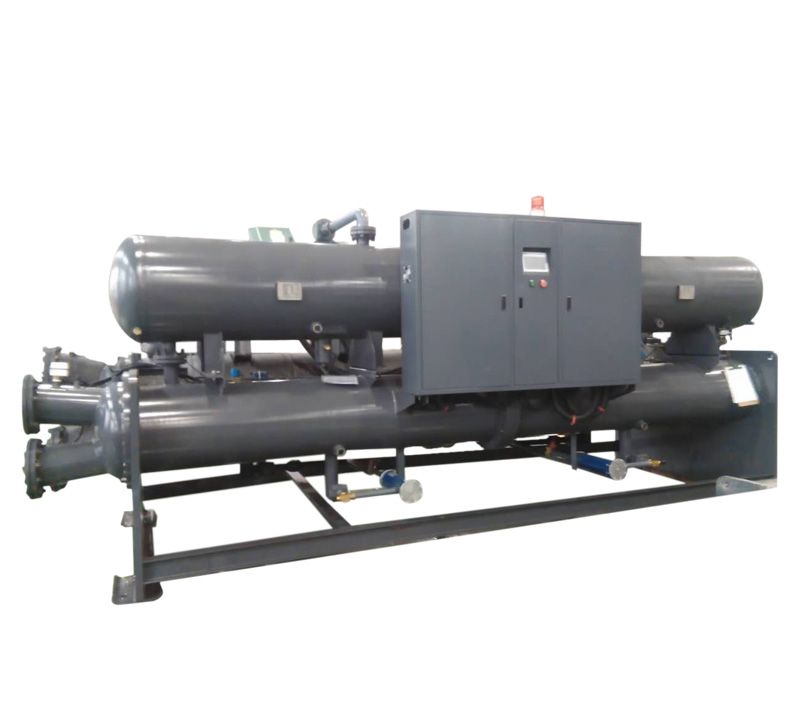

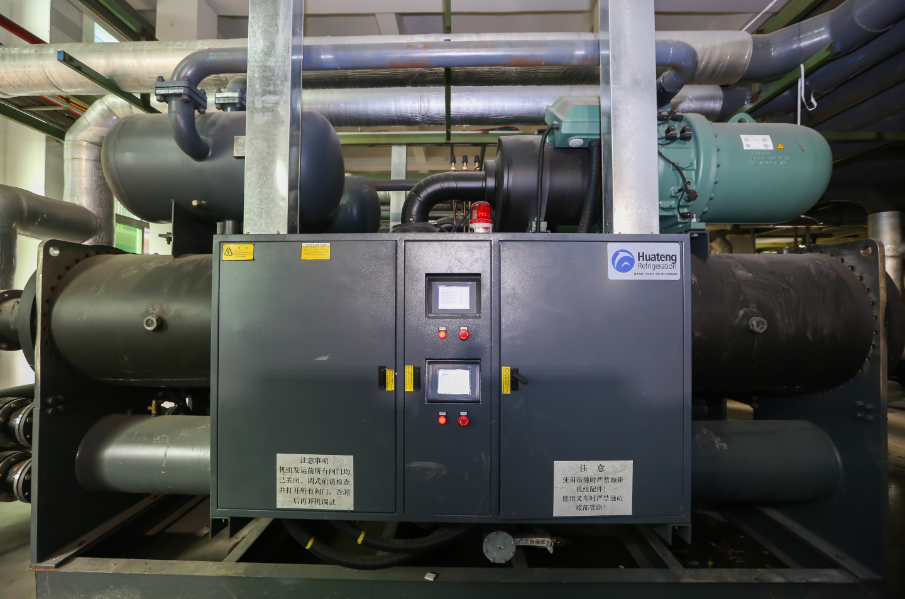

Water Cooled Screw Chiller

Inquire Now Next Product Download
Share

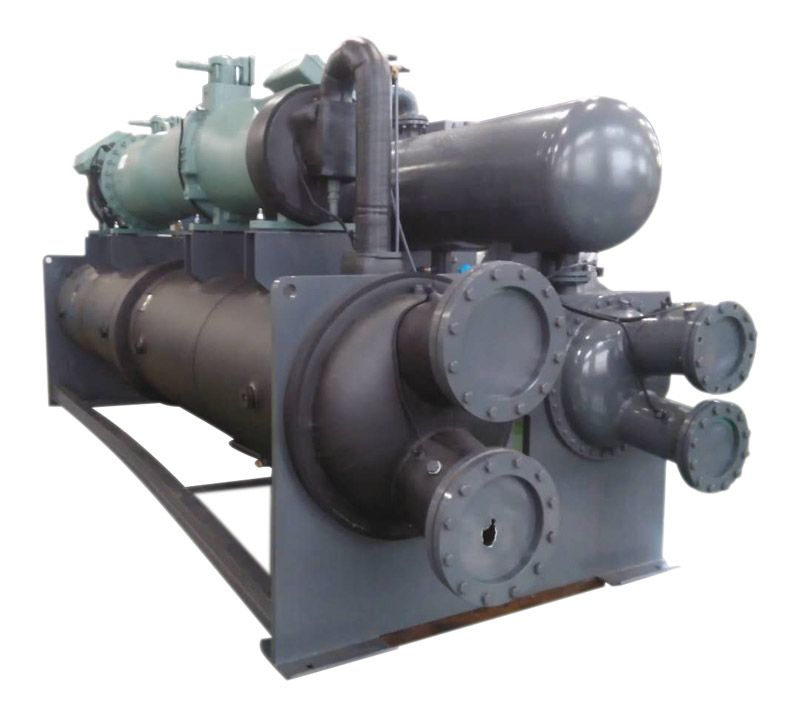

Product Description

Description:

The series water chiller adopts efficient semi-closed screw compressor. the compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably.


Features of chiller:

1. Scroll compressor for modle 12-180kw, semi-hermetic screw compressor for modle 130-2300kw. Each compressor is equipped with a crankcase heater and a thermal overload cut-out; the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line.

2. External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.

Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material.

3. Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.

4. Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.

5. Hydraulic circuit built with galvanized pipe, complete with water discharge connection for shell and tube heat exchanger and flange type hydraulic connectors.

6. Electric panel consist of: Compressor contactor, fan motor contactor, compressor isolating switch, fan protection breaker, phase sequence relay and microprocessor with function display.

7. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.


Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective


Water cooled screw chiller(Environmental protection)
ModelHTK-M200HTK-M220HTK-M250HTK-M270HTK-M300HTK-M350HTK-M400HTK-470HTK-M530HTK-M600HTK-M660HTK-M750HTK-M840
CoolingKW195220250265297350400466530598662748835
CapacityKcal/Hr167700189200215000227900255420301000344000400760455800514280569320643280718100

RT55.4462.5571.0875.3584.4599.52113.73132.5150.7170.03188.23212.68237.42
Power50HZ3P-380V-50HZ
Input power(KW)41.446.151.655.458.967.878.390.9103116.2128.7145.3162.3
EERCOP4.714.774.844.785.045.165.115.135.155.155.145.155.14
Freezing mediumR134a
control modeThermal expansion valve
ComprosserModeSemi-closed double screw
Working styleY-Δ/Δ-Δ
Capacity0-25%-50%-75%-100%
CondensorModeEfficient external thread shell and tube type
Cooling waterIn 30℃/Out 35℃
tempreture
Cooling water flow (m³/h)41.947.353.85763.975.386100.2114128.6142.3160.8179.5
Pressure loss (Kpa)55555858586161636565666767
waterpipeDN80DN80DN100DN100DN100DN100DN125DN125DN125DN150DN150DN150DN200
EvaporatermodeEfficient internal thread shell and tube type
Freeze waterIn 12℃/Out 7℃
tempreture
Freeze water flow (m³/h)33.537.84345.651.160.268.880.291.2102.9113.9128.7143.6
Pressure loss (Kpa)52555858585861616162646464
waterpipeDN80DN80DN100DN100DN100DN100DN125DN125DN125DN150DN150DN150DN200
SafeguardHigh and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection;
high pressure safety valve protection; oil pressure protection; exhaust over heat protection
Units WeightKg980125015901720204024602780306032003850410043004480
SizeL(mm)2300230028003200320036003600380040004000410041004100
W(mm)1100110012501250136013601360140014801480150015001500
H(mm)1420142015301620162017601760178018201820190019001900
Noise(dB)72727374747575767777787981


Note:

1. Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃, evaporation temperature 2℃.

2. We can make order according to your requirement.

3. Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
