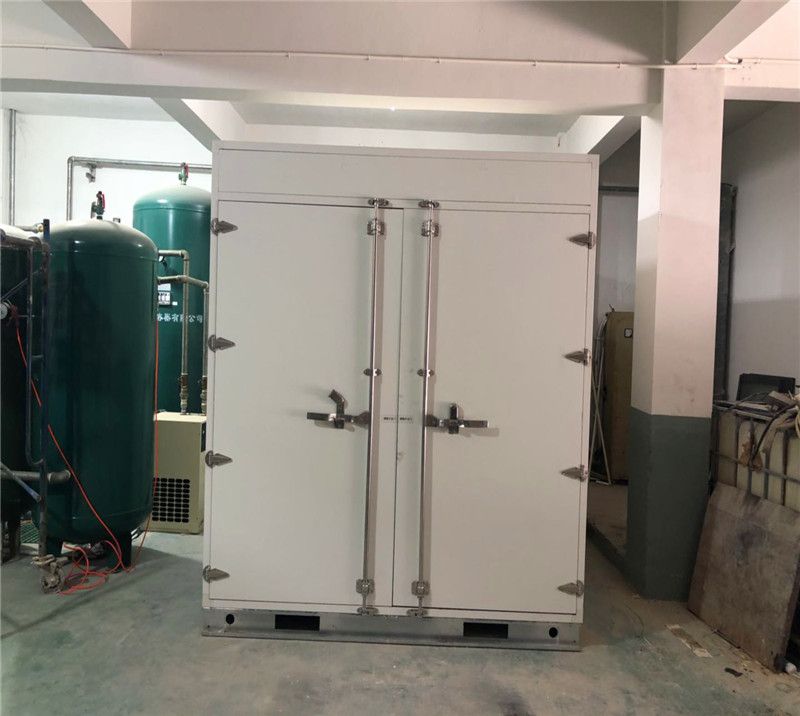

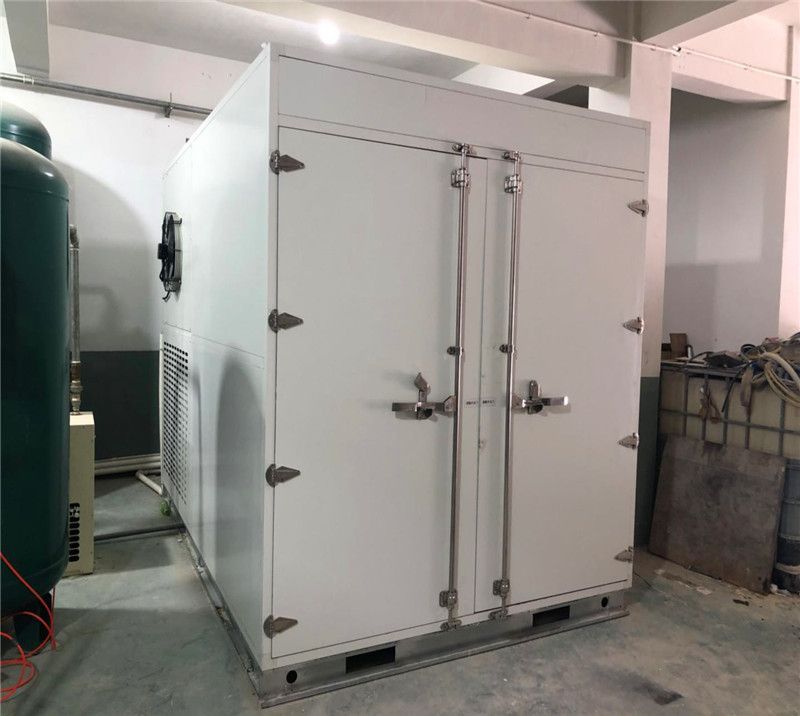

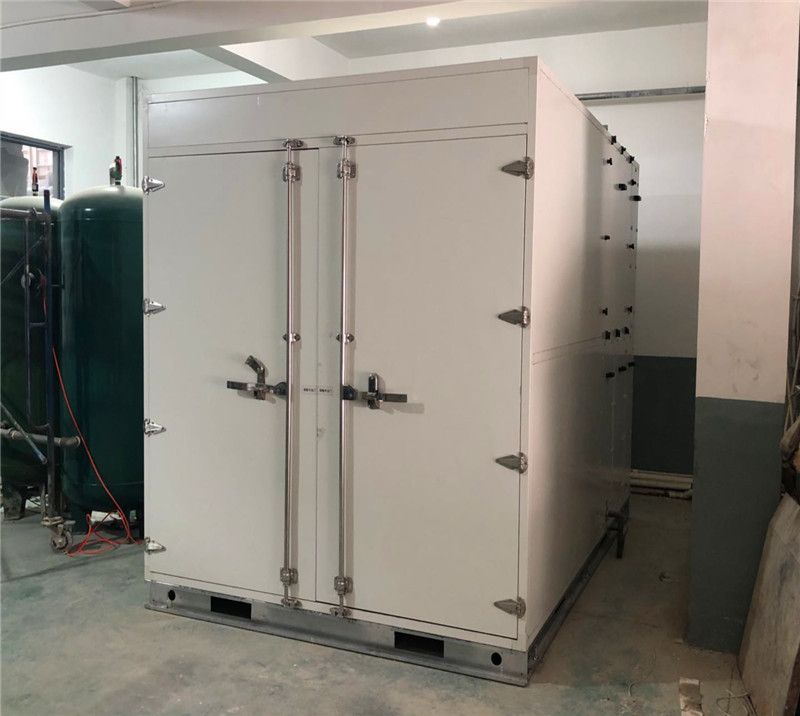

2000kg heat pump sludge dryer for electroplating sludge

Inquire Now None Download
Share

Product Description

Heat pump closed belt modular sludge drying system
ModelHT-20IIJ4dZHT-25IIJ5dZHT-40IIJ4dZHT-50IIJ5dZHT-80IIJ4dZHT-100IIJ4dZHT-100IIJ4dZ*2HT-100IIJ4dZ*3
Water removed rate kg/24h48060096012001920240048007200
Water removed capacity kg/h2025405080100200300
Operating power kw68121423265278
Heating pump modular qty11111123
Compressor qty111144812
Cooling typeair cooledwater cooledair cooledwater cooledair cooledwater cooled ( air cooled optional)
Cooling water flow  (15℃ temp difference)//0.3//0.6//1.534.5
RefrigerantR134a
Power supply380V/3P/50HZ
Dry temperature48~56℃ ( air back)     65~80℃ (air outlet)
Control systemTouch screen + micro computer
Wet mud usable rangeMoisture content (40%~82%) ( different adaptation)
Dry material water contentInverter adjust, moisture content (10%~60%)
Molding methodslitter and strip
Dimension L (mm)13001300170017002700270054008100
Dimension W (mm)14001400170017001200120012001200
Dimension H (mm)24002100270023002420168016801680
Structure typeassemblewhole setassemblewhole setassemblewhole setassembleassemble
Weight (kg)7207209809801600160032004800


Features


1. Wide temperature range,high effciency,enhaced vapor injection compressor;

2. High energy display control,high precision configuration,efficient heat recovery;

3. Modular stitching,transport,installation and removal are easier and more efficient.;

4. Environmentally friendly,energy saving,saving time;

5. The drying parameters are easy to control and wide adjustable range,drying quality is good;

6. Reasonable structure design: site survey, scientific planning, optimize investment costs, to ensure drying quality; easy installation and maintenance, smooth operation, easy to use;

7. Automatic temperature control,safe and environment protection.


This form is for reference only. We provide customized solutions based on customer's parameter requirements, providing each customer with one-to-one, more accurate parameter tables.
