Product Description

Description:

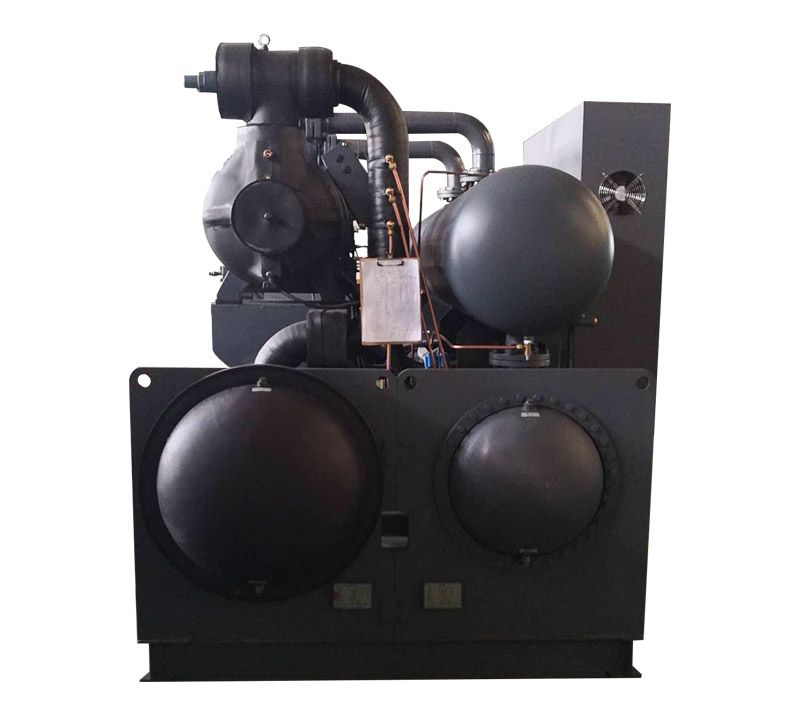

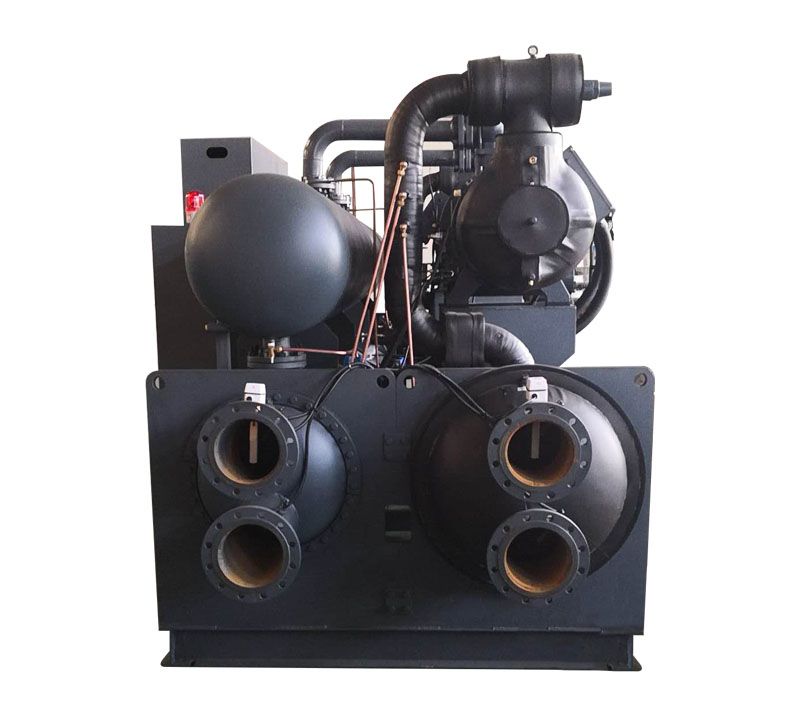

The series water chiller adopts efficient semi-closed screw compressor. the compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably.

Features of chiller:

1. Employing original single/double SCREW compressor, Compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life

2. Employing all-new imported high class component

3. Employing two sets of compressor which can be used jointly or independent

4. Switch control, easy operation and maintenance

5. The weld of brass pipe is non-oxidization

6.Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003,operation safe

Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective

Model		HTK-360/2	HTK-490/2	HTK-590/2	HTK-700/2	HTK-820/2	HTK-930/2	HTK-1040/2	HTK-1170/2	HTK-1290/2	HTK-1420/2	HTK-1640/2	HTK-1970/2
Cooling Capacity	KW	364	490	592	702	824	928	1040	1170	1288	1424	1636	1970
	Kcal/Hr	313040	421400	509120	603720	708640	798080	894400	1006200	1107680	1224640	1406960	1694200
	RT	103.5	139.32	168.33	199.6	234.29	263.86	295.71	332.67	366.22	404.89	465.17	560.14
Power	50HZ	3P-380V-50HZ
Input power(KW)		76.4	100.6	121.2	144.2	167.2	186.4	208.8	234.8	258.8	286	334.4	396.8
EER	COP	4.76	4.87	4.88	4.87	4.93	4.98	4.98	4.98	4.98	4.98	4.89	4.96
Freezing medium		R22
control mode		Thermal expansion valve
Comprosser	Mode	Semi-closed double screw
	Working style	Y-Δ/Δ-Δ
	Capacity	0, 12.5%, 25%, 37.5%, 50%, 62.5%, 75%, 87.5%, 100%
Condensor	Mode	Efficient external thread shell and tube type
	Cooling water	In 30℃/Out 35℃
	tempreture	In 30℃/Out 35℃
	Cooling water flow (m³/h)	78.3	105.4	127.3	150.9	177.2	199.5	223.6	251.6	276.9	306.2	351.7	423.6
	Pressure loss (Kpa)	58	58	63	63	65	65	67	67	67	70	70	72
	waterpipe	DN80ⅹ2	DN80ⅹ2	DN100ⅹ2	DN100ⅹ2	DN125ⅹ2	DN125ⅹ2	DN125ⅹ2	DN150ⅹ2	DN150ⅹ2	DN150ⅹ2	DN200ⅹ2	DN200ⅹ2
Evaporater	mode	Efficient internal thread shell and tube type
	Freeze water	In 12℃/Out 7℃
	tempreture	In 12℃/Out 7℃
	Freeze water flow (m³/h)	62.6	84.3	101.8	120.7	141.7	159.6	178.9	201.2	221.5	244.9	281.4	338.8
	Pressure loss (Kpa)	58	58	63	63	65	65	65	66	67	68	68	70
	waterpipe	DN100	DN125	DN125	DN150	DN150	DN150	DN200	DN200	DN200	DN200	DN200	DN250
Safeguard		High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection;
Safeguard		high pressure safety valve protection; oil pressure protection; exhaust over heat protection
Weight	Kg	2050	2050	2610	2820	3350	4040	4560	4900	5250	6320	6730	7250
Size	L(mm)	4200	4200	4400	4400	4600	4600	4600	4700	4800	4800	4800	4800
	W(mm)	1350	1350	1480	1480	1560	1560	1620	1620	1620	1680	1680	1680
	H(mm)	1660	1660	1750	1980	1980	2100	2100	2200	2230	2230	2230	2230
Noise(dB)		74	73	73	74	74	75	75	76	77	77	78	80

Note:

1. Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃, evaporation temperature 2℃.

2. We can make order according to your requirement.

3. Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
