Product Description

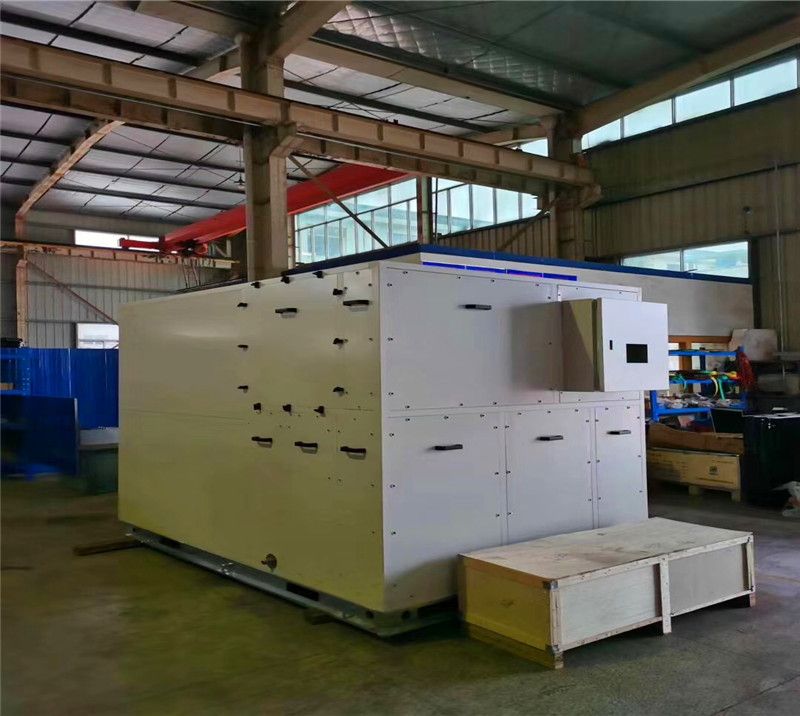

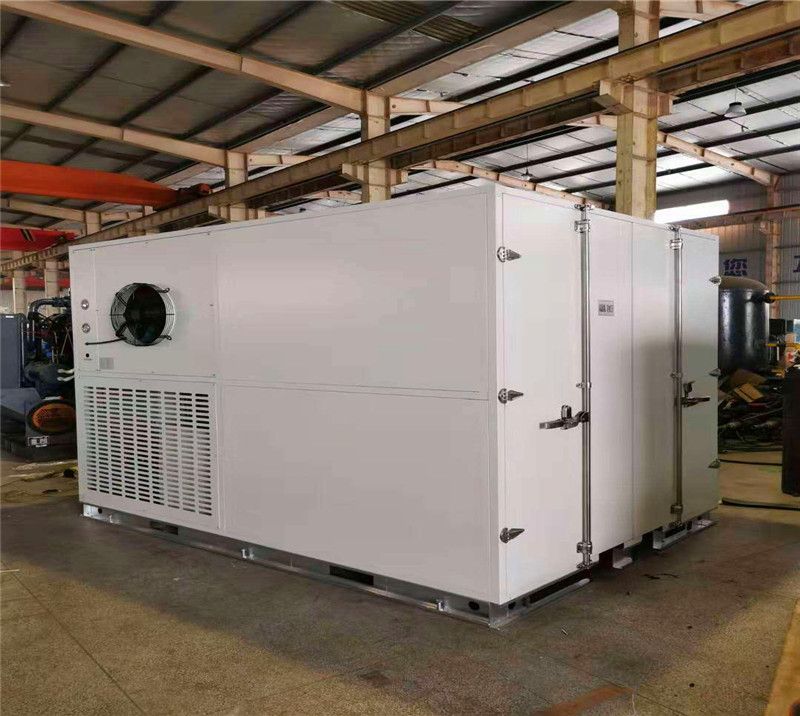

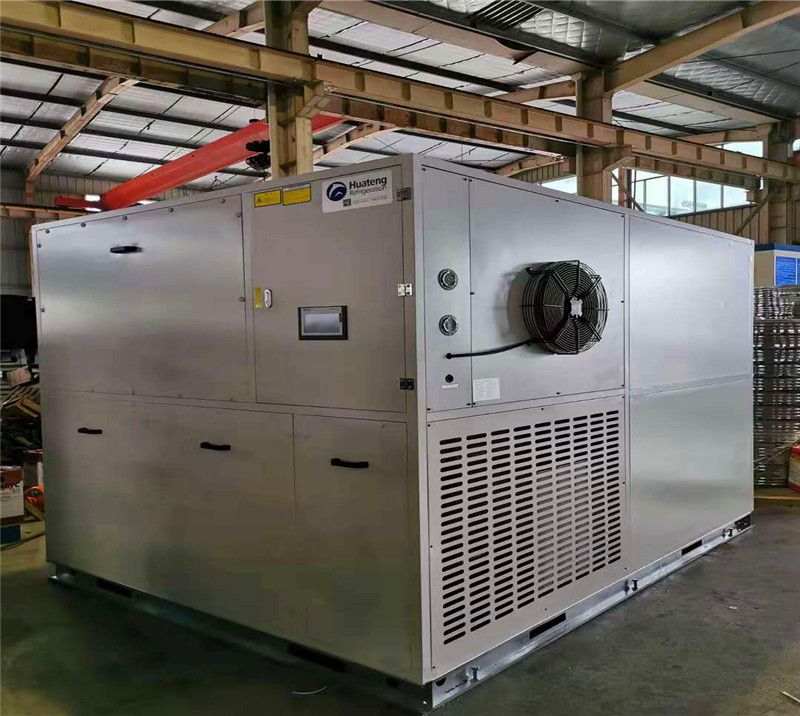

The biological treatment of industrial wastewater will produce a large amount of sludge. The low-temperature sludge dryer machine is particularly suitable for dehydration sludge of the box filter. The sludge is dry from the initial water range of 40% to 82% to 10-60%. The drying temperature is 48 ~ 80 ° C, and the drying efficiency is high. It is an ideal sludge treatment solution with cost-effective.
1. Environmentally friendly, energy saving, saving time;
2. Automatic temperature control,safe and environment protection;
3. Wide temperature range,high effciency,enhaced vapor injection compressor;
4. High energy display control,high precision configuration,efficient heat recovery;
5. Modular stitching,transport,installation and removal are easier and more efficient;
6. The test cycle is short; it can be installed indoors and outdoor to save the land area;
7. The drying parameters are easy to control and wide adjustable range,drying quality is good;
8. Smaller than traditional houses, large processing volume, reduced investment; no complex civil engineering; installation and adjustment simple;
9. Reasonable structure design: site survey, scientific planning, optimize investment costs, to ensure drying quality; easy installation and maintenance, smooth operation, easy to use.
Applicable to: heat pump sludge dryer industrial sludge, domestic sludge, chemical sewage, food sludge and drying industry
This form is for reference only. We provide customized sewage sludge drying solutions based on customer's parameter requirements, providing each customer with one-to-one, more accurate parameter tables. Please feel free to select your interested sludge dryer and contact us for detailed information!
Heat pump closed belt modular sludge drying system | |||||
Model | HT-200IIJ4dZ | HT-200IIJ4dZ*2 | HT-200IIJ4dZ*3 | HT-200IIJ4dZ*4 | HT-200IIJ4dZ*5 |
Water removed rate kg/24h | 4800 | 9600 | 14400 | 19200 | 24000 |
Water removed capacity kg/h | 200 | 400 | 600 | 800 | 1000 |
Operating power kw | 53 | 106 | 156 | 212 | 265 |
Heating pump modular qty | 1 | 2 | 3 | 4 | 5 |
Compressor qty | 4 | 8 | 12 | 16 | 20 |
Cooling type | Water cooled | ||||
Cooling water flow (15℃ temp difference) | 3 | 6 | 9 | 12 | 15 |
Refrigerant | R134a | ||||
Power supply | 380V/3P/50HZ | ||||
Dry temperature | 48~56℃ ( air back) 65~80℃ (air outlet) | ||||
Control system | Touch screen + micro computer | ||||
Wet mud usable range | Moisture content (40%~82%) ( different adaptation) | ||||
Dry material water content | Inverter adjust, moisture content (10%~60%) | ||||
Molding method | slitter and strip | ||||
Dimension L (mm) | 3250 | 6500 | 9750 | 13000 | 16250 |
Dimension W (mm) | 1400 | 1400 | 1400 | 1400 | 1400 |
Dimension H (mm) | 2080 | 2080 | 2080 | 2080 | 2080 |
Structure type | whole set | assemble | assemble | assemble | assemble |
Weight (kg) | 2000 | 4000 | 6000 | 8000 | 14000 |
