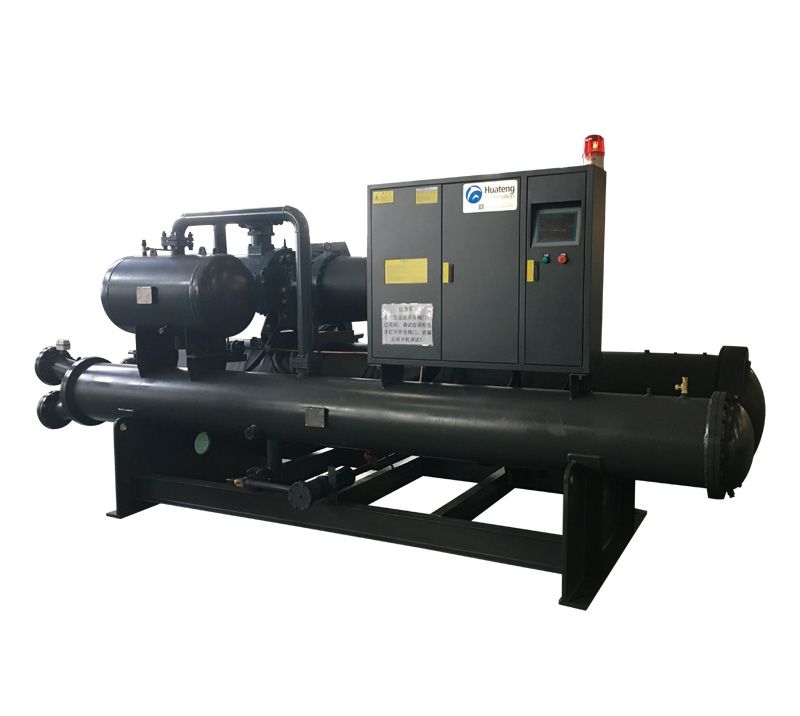

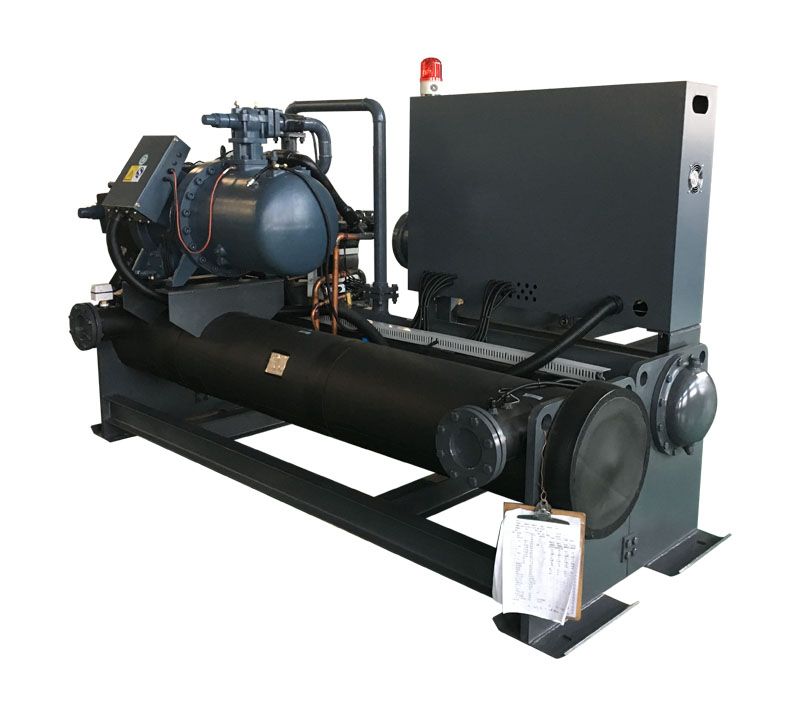

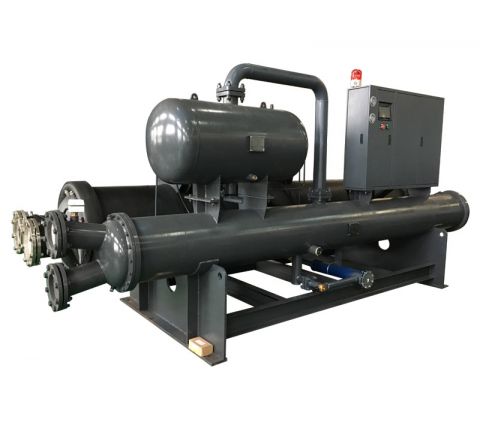

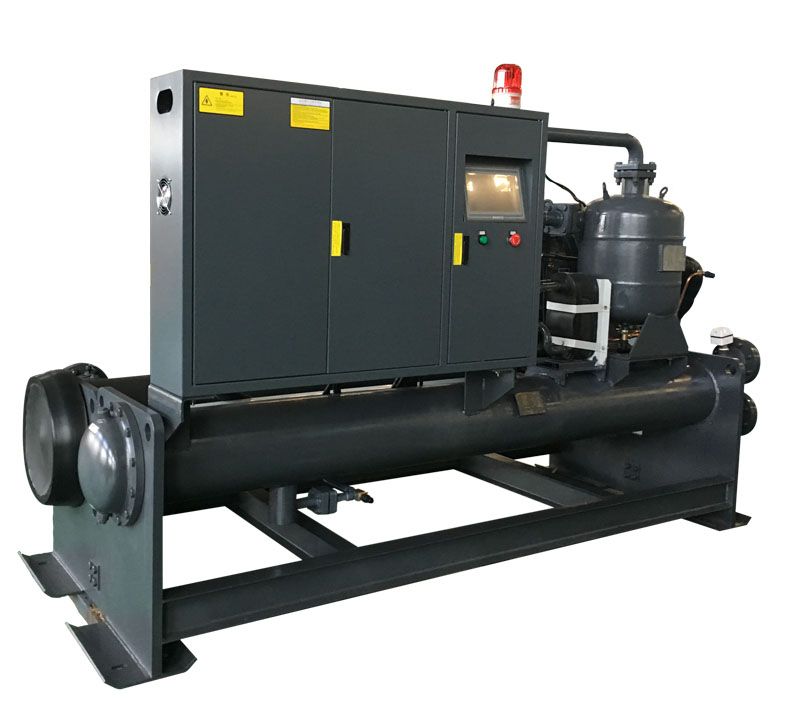

brine low temperature water cooled chiller

Inquire Now Next Product Download
Share

Product Description

Features:

  1. Scroll compressor for modle 12-180kw, semi-hermetic screw compressor for modle 130-2300kw. Each compressor is equipped with a crankcase heater and a thermal overload cut-out; the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line.

 2. External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.

Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material.

 3. Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.

 4. Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.

 5. Hydraulic circuit built with galvanized pipe, complete with water discharge connection for shell and tube heat exchanger and flange type hydraulic connectors.

 6. Electric panel consist of: Compressor contactor, fan motor contactor, compressor isolating switch, fan protection breaker, phase sequence relay and microprocessor with function display.

 7. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.


Safety system:

   1  Compressor reverse protective

   2  Freeze protector protective

   3  Refrigerant safety valve

   4  Buzzer

   5  High-pressure gauge and Low-pressure gauge

   6  Power phase failure protector

   7  Coil over-heat protector

   8  Temperature auto-switch

   9  Refrigerant shortage protective



Water-cooled screw low temperature chiller(-35℃)
ModelHTK-L60D-35HTK-L80D-35HTK-L90D-35HTK-L110D-35HTK-L120D-35HTK-L140D-35HTK-L150D-35HTK-L160D-35HTK-L180D-35
CoolingKW647691106118137151162181
CapacityKcal/Hr55040653607826091160101480117820129860139320155660

RT18.221.6125.8730.1433.5538.9542.9346.0651.46
Power 50HZ3P-380V-50HZ
Input power(KW)6577.491.7107.4119.9138.6152.2162.7181
EERCOP0.980.980.990.990.980.990.9911
RefrigerantR404A
control modeThermal expansion valve
ComprosserModeSemi-closed double screw
Working styleY-Δ/Δ-Δ
Capacity0-25%-50%-75%-100%
CondensorModeEfficient external thread shell and tube type
Cooling water In 30℃/Out 35℃
tempreture
Cooling water flow (m³/h)13.816.319.622.825.429.532.534.838.9
Pressure loss (Kpa)555555585858585861
waterpipe sizeDN65DN65DN80DN80DN80DN100DN100DN100DN100
EvaporatermodeEfficient internal thread shell and tube type
Freeze water In -30℃/Out -35℃
tempreture
Freeze water flow (m³/h)13.41619.122.324.828.831.73438
Pressure loss (Kpa)525555585858586161
waterpipe sizeDN65DN65DN80DN80DN80DN100DN100DN100DN100
SafeguardHigh and low pressure protection,exhaust overheating protection, safety valve,antifreezing  protection,current protection,
electric leakage protection,compressor thermal protection,over current protection,fault phase protection,Oil level protection etc.
SizeL(mm)260026002900290031003100320032003300
W(mm)110011001180118012501250131013101420
H(mm)142014201520152015801580162016201770
Units WeightKg780820980102012501380159016701820
Noise(dB)646465656767686869

ModelHTK-L210D-35/2HTK-L240D-35/2HTK-L270D-35/2HTK-L300D-35/2HTK-L320D-35/2HTK-L360D-35/2


Cooling
Capacity
KW212236274302324362


Kcal/Hr182320202960235640259720278640311320


RT60.2867.177.9185.8792.12102.93


Power 50HZ3P-380V-50HZ
Input power(KW)214.8239.8277.2304.4325.4362


EERCOP0.990.980.990.9911


RefrigerantR404A
control modeThermal expansion valve
ComprosserModeSemi-closed double screw
Working styleY-Δ/Δ-Δ
Capacity0,12.5%, 25%,37.5%, 50%,62.5%, 75%,87.5%, 100%
CondensorModeEfficient external thread shell and tube type
Cooling water In 30℃/Out 35℃
tempreture
Cooling water flow (m³/h)45.650.758.964.969.777.8


Pressure loss (Kpa)555555585858


waterpipe sizeDN80×2DN80×2DN100×2DN100×2DN100×2DN100×2


EvaporatermodeEfficient internal thread shell and tube type
Freeze water In -30℃/Out -35℃
tempreture
Freeze water flow (m³/h)44.549.657.563.46876


Pressure loss (Kpa)525555585858


waterpipe sizeDN100DN100DN100DN100DN100DN100


SafeguardHigh and low pressure protection,exhaust overheating protection, safety valve,antifreezing  protection,current protection,
electric leakage protection,compressor thermal protection,over current protection,fault phase protection,Oil level protection etc.
SizeL(mm)351035104200420044004400


W(mm)135013501480148014801480


H(mm)172017201660175019801980


WeightKg285029803210354038502820


Noise(dB)686871727373
