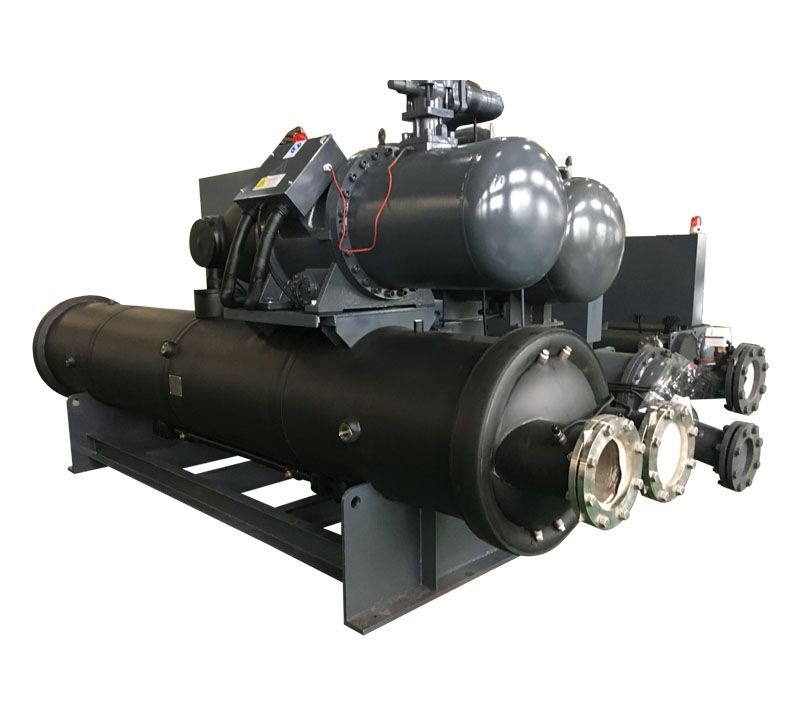

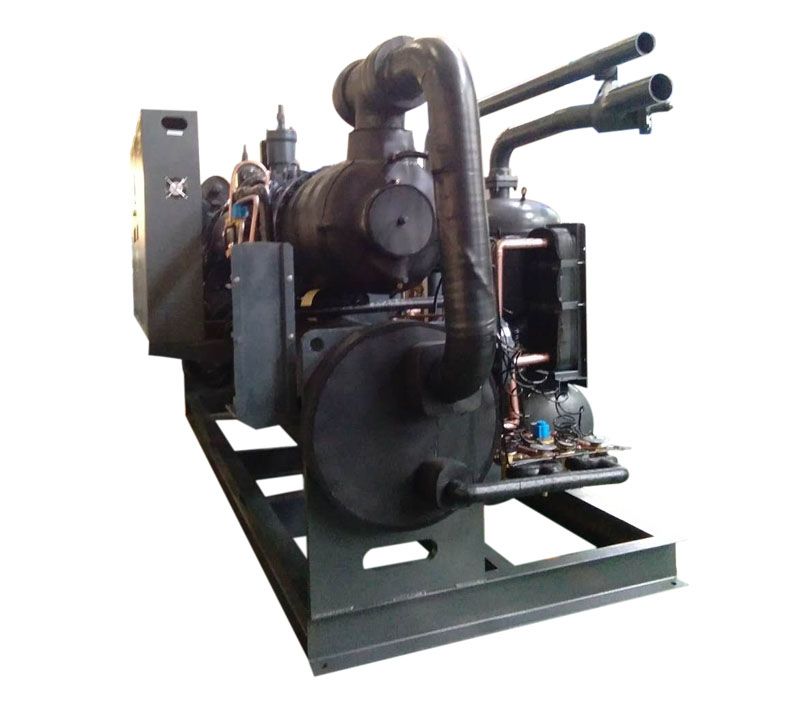

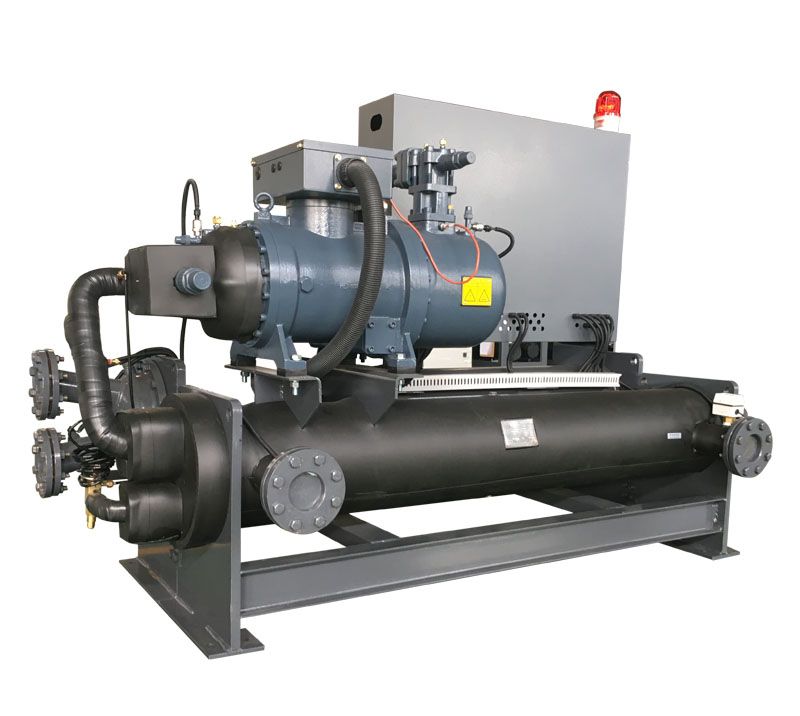

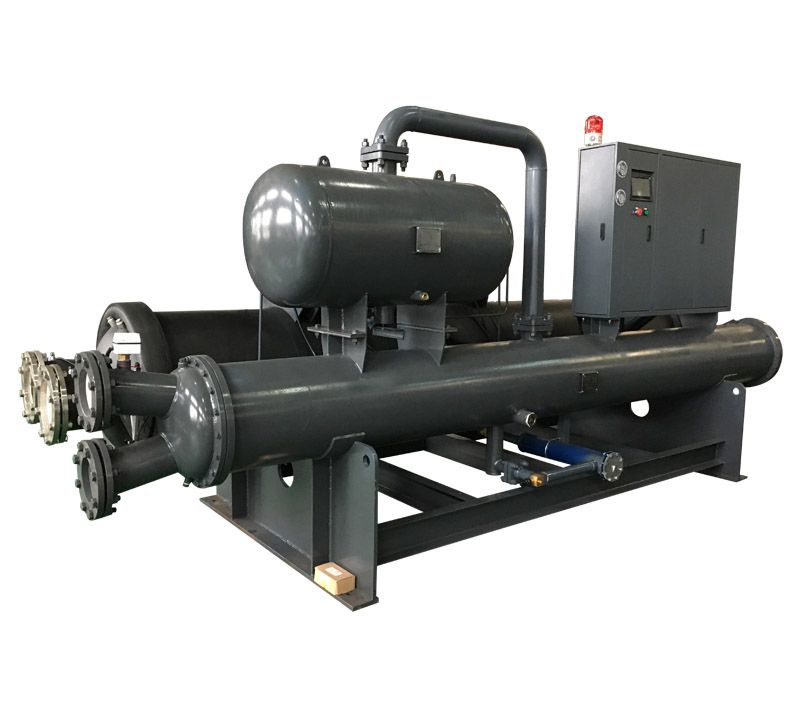

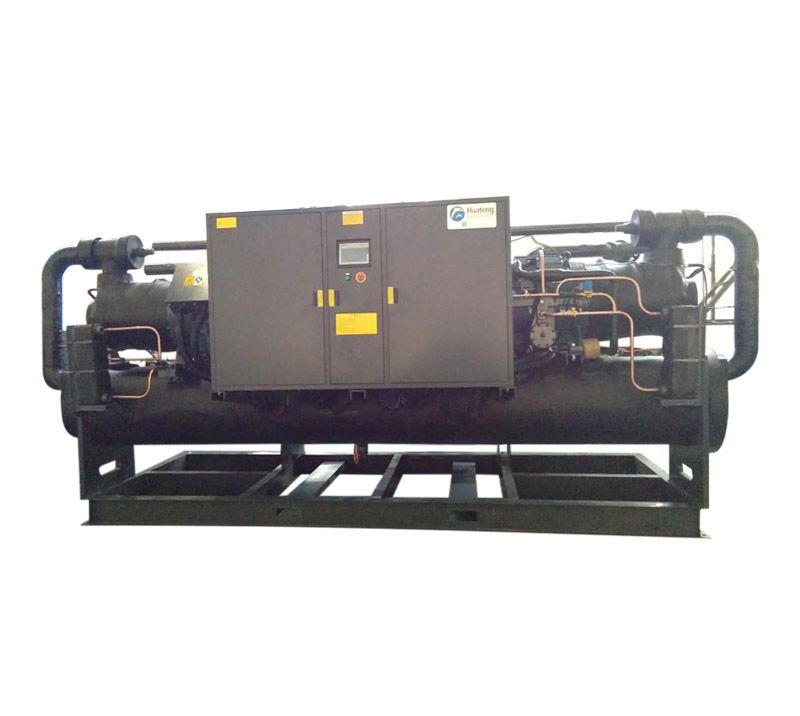

-35 degree Evaporative type low temperature water chiller

Inquire Now Next Product Download
Share

Product Description

Description

       The series water chiller used the efficient screw compressor from European, with its own superiority: high energy efficiency, low noise, high reliability, small footprint, easy installation, simple operation and high flexibility. It is widely used in surface engineering, medicine, chemical industry, metallurgy, leather, laser, electronics, plastic injection molding, printing and other industries. The series water chillers have too many models. It can achieve a perfect match for industrial applications.



Features of chiller:

   1. Employing original double SCREW compressor, Compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life

   2. Employing all-new imported high class component

   3. Employing two sets of compressor which can be used jointly or independent

   4. Switch control, easy operation and maintenance

   5. The weld of brass pipe is non-oxidization


Water-cooled screw low temperature chiller(-35℃)
ModelHTK-L60D-35HTK-L80D-35HTK-L90D-35HTK-L110D-35HTK-L120D-35HTK-L140D-35HTK-L150D-35HTK-L160D-35HTK-L180D-35
CoolingKW647691106118137151162181
CapacityKcal/Hr55040653607826091160101480117820129860139320155660

RT18.221.6125.8730.1433.5538.9542.9346.0651.46
Power 50HZ3P-380V-50HZ
Input power(KW)6577.491.7107.4119.9138.6152.2162.7181
EERCOP0.980.980.990.990.980.990.9911
RefrigerantR404A
control modeThermal expansion valve
ComprosserModeSemi-closed double screw
Working styleY-Δ/Δ-Δ
Capacity0-25%-50%-75%-100%
CondensorModeEfficient external thread shell and tube type
Cooling water In 30℃/Out 35℃
tempreture
Cooling water flow (m³/h)13.816.319.622.825.429.532.534.838.9
Pressure loss (Kpa)555555585858585861
waterpipe sizeDN65DN65DN80DN80DN80DN100DN100DN100DN100
EvaporatermodeEfficient internal thread shell and tube type
Freeze water In -30℃/Out -35℃
tempreture
Freeze water flow (m³/h)13.41619.122.324.828.831.73438
Pressure loss (Kpa)525555585858586161
waterpipe sizeDN65DN65DN80DN80DN80DN100DN100DN100DN100
SafeguardHigh and low pressure protection,exhaust overheating protection, safety valve,antifreezing  protection,current protection,
electric leakage protection,compressor thermal protection,over current protection,fault phase protection,Oil level protection etc.
SizeL(mm)260026002900290031003100320032003300
W(mm)110011001180118012501250131013101420
H(mm)142014201520152015801580162016201770
Units WeightKg780820980102012501380159016701820
Noise(dB)646465656767686869

ModelHTK-L210D-35/2HTK-L240D-35/2HTK-L270D-35/2HTK-L300D-35/2HTK-L320D-35/2HTK-L360D-35/2


Cooling
Capacity
KW212236274302324362


Kcal/Hr182320202960235640259720278640311320


RT60.2867.177.9185.8792.12102.93


Power 50HZ3P-380V-50HZ
Input power(KW)214.8239.8277.2304.4325.4362


EERCOP0.990.980.990.9911


RefrigerantR404A
control modeThermal expansion valve
ComprosserModeSemi-closed double screw
Working styleY-Δ/Δ-Δ
Capacity0,12.5%, 25%,37.5%, 50%,62.5%, 75%,87.5%, 100%
CondensorModeEfficient external thread shell and tube type
Cooling water In 30℃/Out 35℃
tempreture
Cooling water flow (m³/h)45.650.758.964.969.777.8


Pressure loss (Kpa)555555585858


waterpipe sizeDN80×2DN80×2DN100×2DN100×2DN100×2DN100×2


EvaporatermodeEfficient internal thread shell and tube type
Freeze water In -30℃/Out -35℃
tempreture
Freeze water flow (m³/h)44.549.657.563.46876


Pressure loss (Kpa)525555585858


waterpipe sizeDN100DN100DN100DN100DN100DN100


SafeguardHigh and low pressure protection,exhaust overheating protection, safety valve,antifreezing  protection,current protection,
electric leakage protection,compressor thermal protection,over current protection,fault phase protection,Oil level protection etc.
SizeL(mm)351035104200420044004400


W(mm)135013501480148014801480


H(mm)172017201660175019801980


WeightKg285029803210354038502820


Noise(dB)686871727373


Note:

1.The above parameters refrigerating capacity based on the condensation temperature 40℃,evaporator water inlet temperature -30℃,water outlet temperature -35℃

2.In order to ensure technology constantly updated, the above parameters are subject to change without prior notice

3.This unit can be customized heat recovery according to the customer request,hot recycled is 25%-30% of unit refrigerating capacity,indicate the hot recycled in custom units.The highest hot water temperature of the heat recovery up to 55℃.
