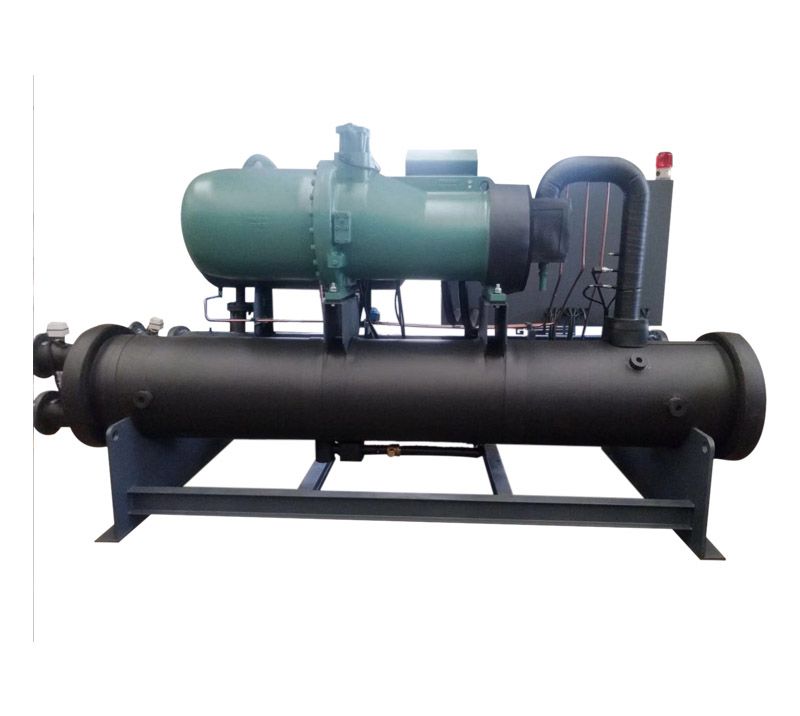

Flooded Type Screw Type Chiller

Inquire Now Next Product Download
Share

Product Description

Description:

The series water chiller adopts efficient semi-closed screw compressor. the compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably. Min.outlet temperature can be -60℃.


Features of chiller:

1. The unit adopts a semi-closed screw compressor. The compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient.

2. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the cooling efficiency. At the same time, in order to reduce the lubricating oil entering the heat exchanger, the unit increases the secondary oil content, minimizes the amount of oil entering the heat exchanger, and passes the specially designed ejector. The oil return device directs the lubricating oil in the heat exchanger back to the compressor to improve the refrigeration efficiency of the unit and also improve the reliability of the unit operation.

3. The unit is equipped with multiple protections to make the unit operate safely and reliably. The unit adopts direct cooling mode, which reduces the loss caused by the intermediate heat exchange and greatly reduces the running cost.

4. Environmentally friendly 134a refrigerant is used to improve unit operating efficiency. The unit is equipped with multiple protections to make the unit safe and reliable.



Flooded type water cooled screw refrigeration unit (Environmental protection)
ModelHTK-M300MHTK-M400MHTK-M450MHTK-M530MHTK-M600MHTK-M640MHTK-M680MHTK-M750MHTK-M850MHTK-M950M
CoolingKW300396453530600640678750848947
CapacityKcal/Hr258000340560389580455800516000550400583080645000729280814420

RT85.3112.6128.8150.7170.6181.97192.78213.25241.11269.26
Power50HZ3P-380V-50HZ
Input power(KW)55.867.878.391103109.7116.2128.7145.4162.3
EERCOP5.385.845.795.825.835.835.835.835.835.83
Freezing mediumR134a
control modeElectronic expansion valve
ComprosserModeSemi-closed double screw
Working styleY-Δ/Δ-Δ
Capacity0-25%-50%-75%-100%
CondensorModeEfficient external thread shell and tube type
Cooling waterIn 30℃/Out 35℃
tempreture
Water discharge (m3/h)64.585.197.4114129137.6145.8161.3182.3203.6
Pressure loss (Kpa)55555558585860616165
waterpipeDN100DN125DN125DN125DN150DN150DN150DN150DN200DN200
EvaporatermodeEfficient finned tube filled with liquid
Cooling waterIn 12℃/Out 7℃
tempreture
Water discharge (m3/h)51.668.177.991.2103.2110.1116.6129145.9162.9
Pressure loss (Kpa)52555558585858586161
waterpipeDN100DN125DN125DN125DN150DN150DN150DN150DN200DN200
SafeguardHigh and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection;
high pressure safety valve protection; oil pressure protection; exhaust over heat protection
Units WeightKg1320148021302560310035003800385040704150
SizeL(mm)3600360036003800380038004000400040004000
W(mm)1460146014601560156016401760176017601760
H(mm)1520152016301630165016501800186019101910
Noise(dB)73757576767676787880



Note:

1. Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃, evaporation temperature machine5℃.

2. We can make order according to your requirement.

3. Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
