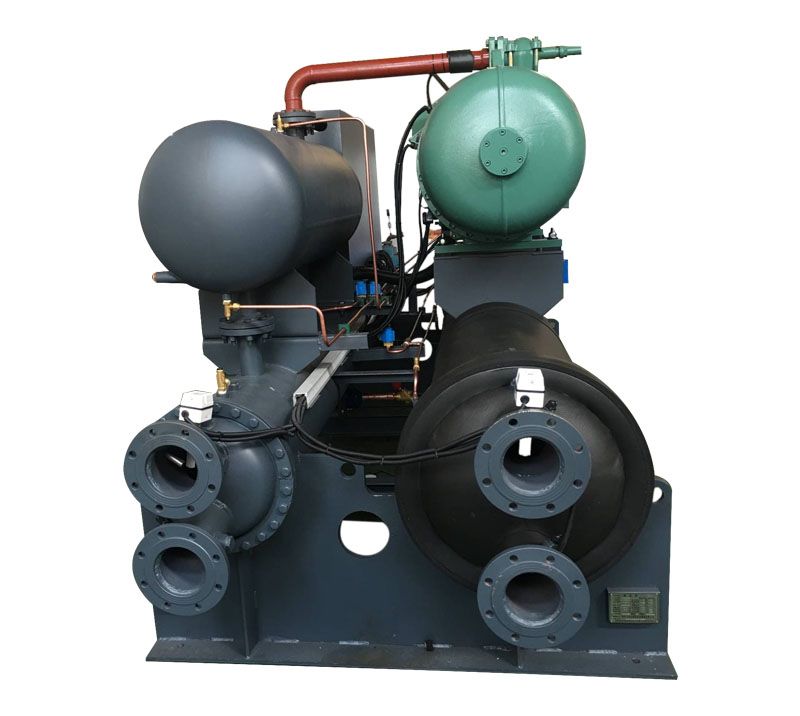

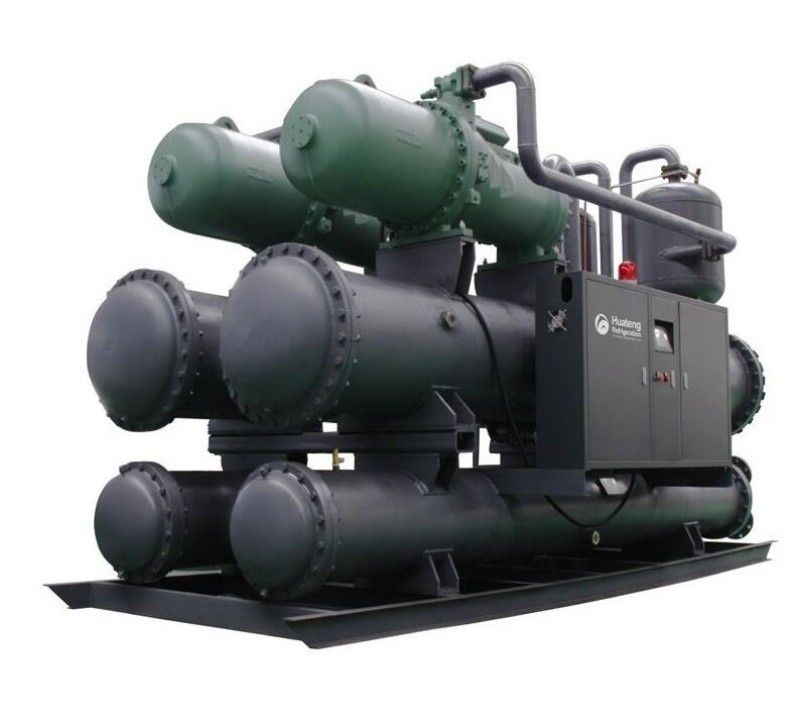

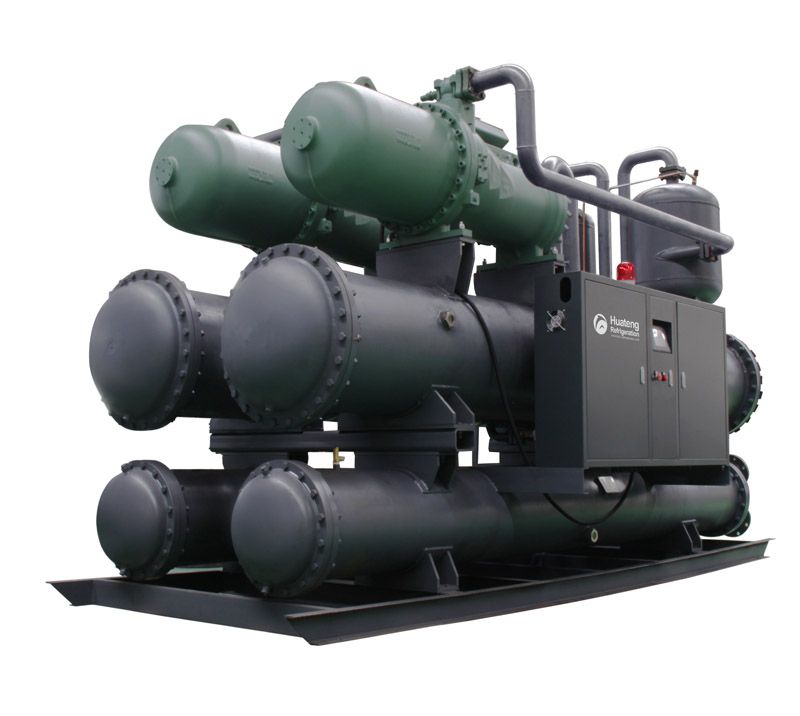

Flooded Type Screw Type Chiller

Inquire Now
Next Product Download
Share

Product Description

Description:

The series water chiller adopts efficient semi-closed screw compressor. the compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably. Min.outlet temperature can be -60℃.


Features of chiller:

1. The unit adopts a semi-closed screw compressor. The compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient.

2. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the cooling efficiency. At the same time, in order to reduce the lubricating oil entering the heat exchanger, the unit increases the secondary oil content, minimizes the amount of oil entering the heat exchanger, and passes the specially designed ejector. The oil return device directs the lubricating oil in the heat exchanger back to the compressor to improve the refrigeration efficiency of the unit and also improve the reliability of the unit operation.

3. The unit is equipped with multiple protections to make the unit operate safely and reliably. The unit adopts direct cooling mode, which reduces the loss caused by the intermediate heat exchange and greatly reduces the running cost.

4. Environmentally friendly 134a refrigerant is used to improve unit operating efficiency. The unit is equipped with multiple protections to make the unit safe and reliable.


ModelHTK-1040M/2HTK-1060M/2HTK-1300M/2HTK-1440M/2HTK-1590M/2
HTK-1840M/2HTK-2200M/2
CoolingKW1036116213061440159018402198
CapacityKcal/Hr89096099932011231601238400136740015824001890280

RT294.57330.4371.34409.44452.09523.17624.96
Power50HZ3P-380V-50HZ
Input power(KW)185.6208233.8257.8284.4326.6395.2
EERCOP5.585.595.595.595.595.635.56
Freezing mediumR22
control modeElectronic expansion valve
ComprosserModeSemi-closed double screw
Working styleY-Δ/Δ-Δ
Capacity0-25%-50%-75%-100%
CondensorModeEfficient external thread shell and tube type
Cooling water tempretureIn 30℃/Out 35℃
Water discharge222.7249.8280.8309.6341.9395.6472.6
(m3/h)
Hydraulic (Kpa)55555558585861
waterpipeDN125×2DN150×2DN150×2DN150×2DN200×2DN200×2DN200×2
EvaporatermodeEfficient finned tube filled with liquid
Cooling waterIn 12℃/Out 7℃
tempreture
Water discharge178.2199.9224.6247.7273.5316.5378.1
(m3/h)
Hydraulic (Kpa)52555558585858
waterpipeDN200DN200DN200DN200DN200DN250DN250
SafeguardHigh and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection;
high pressure safety valve protection; oil pressure protection; exhaust over heat protection
WeightKg4620576067507130770078408100
SizeL4600460046004800480049005000
W1460146014601560156016401640
H1620162017301730185018501880
Noise(dB)73757576767679


Note:

1. Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃, evaporation temperature machine5℃.

2. We can make order according to your requirement.

3. Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
