Product Description

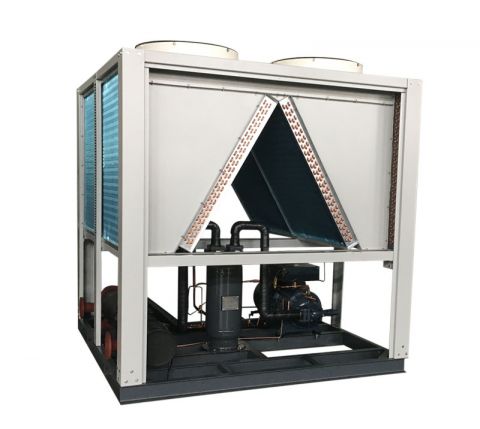

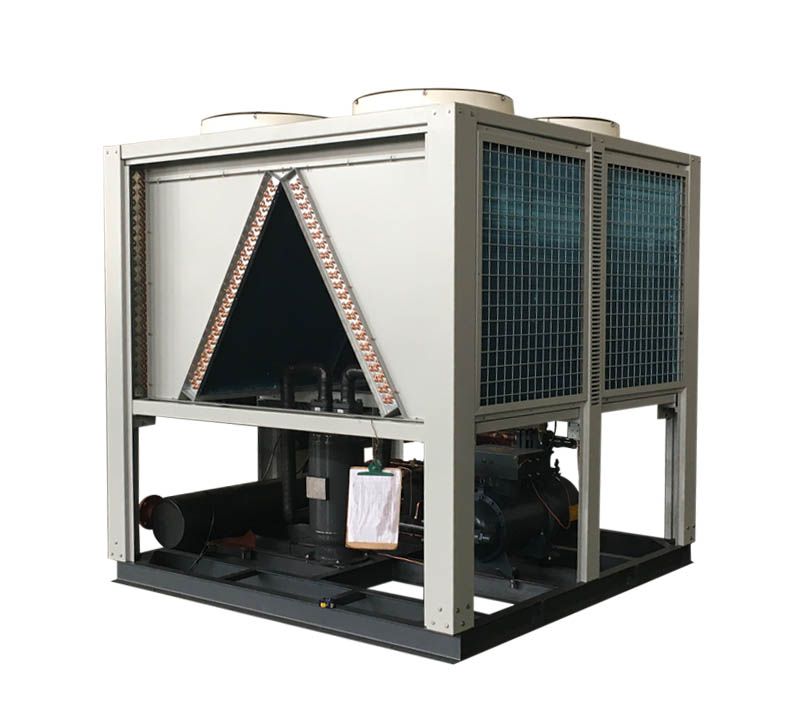

| Air source vortex type heat pump hot water heater ( 80degree) | ||||
| Model | HTB-R19FG | HTB-R35FG | HTB-R70FG | |
| Heating capacity | KW | 18.6 | 33.6 | 67.3 |
| Kcal/Hr | 15962 | 28930 | 57861 | |
| Power | 3P-380V-50HZ | |||
| Input power(KW) | 4.6 | 7.7 | 15.4 | |
| Current (A) | 8.2 | 13.8 | 27.5 | |
| Freezing medium | R134a | |||
| Control mode | Electronic expansion valve | |||
| Comprosser | Mode | Scroll compressor | ||
| Working style | Direct start | |||
| Capacity | 0-100% | |||
| Hot water system | Mode | High efficiency tank heat exchanger | ||
| Hot water capacity (L/H) | 398 | 721 | 1442 | |
| Hot water circulation(m3/h) | 3.2 | 5.8 | 11.5 | |
| Max outlet temperature | 85 | 85 | 85 | |
| Hot water pipe | DN25 | DN40 | DN50 | |
| Fan | Mode | Efficient axial flow fan | ||
| waterpipe | Side of the wind | Side of the wind | Up of the wind | |
| Units Weight | Kg | 160 | 293 | 860 |
| Size | L(mm) | 850 | 1450 | 2000 |
| W(mm) | 710 | 660 | 1100 | |
| H(mm) | 1350 | 1530 | 1900 | |
| Noise(dB) | 62 | 64 | 68 | |
