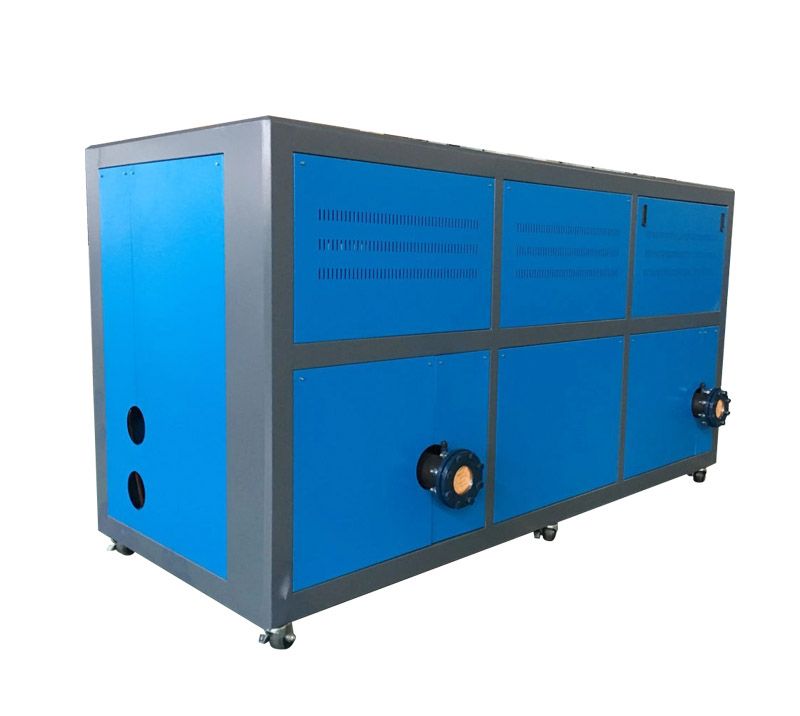

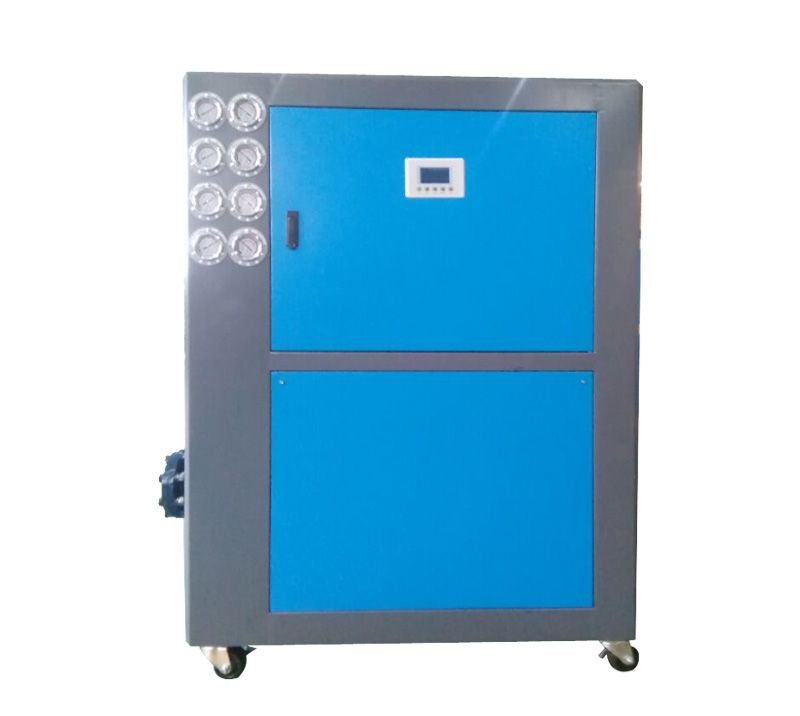

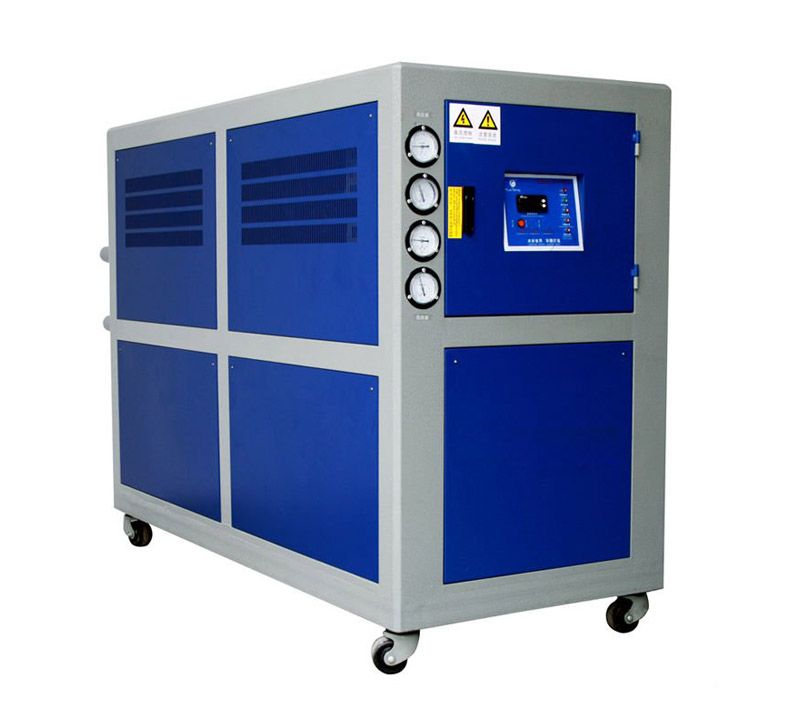

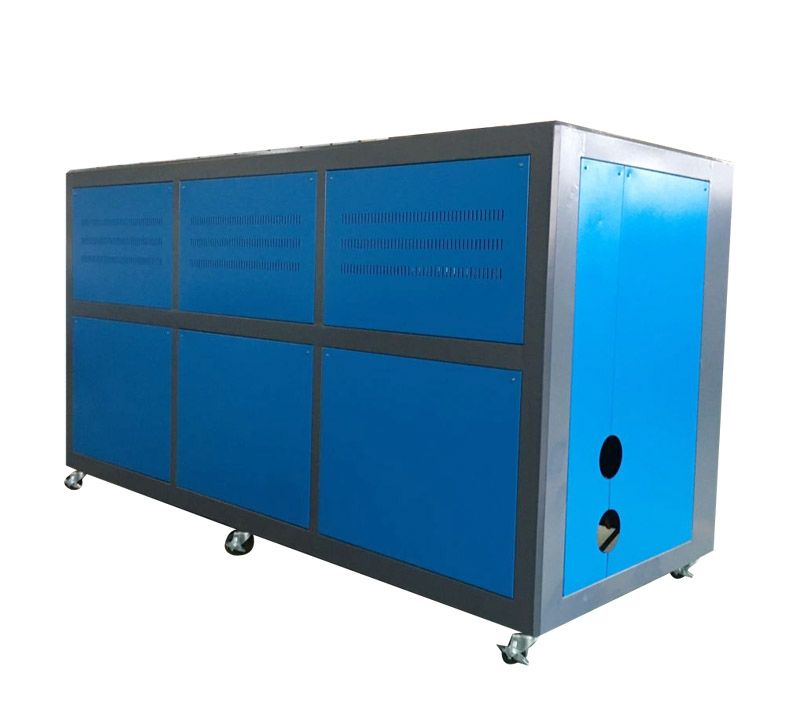

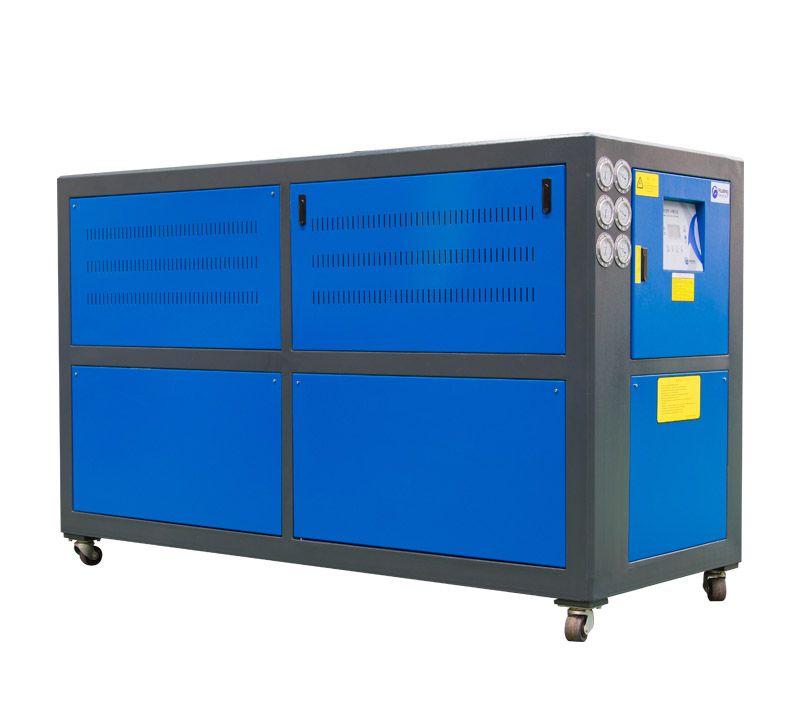

The series water cooled scroll type chiller cooling capacity from 9KW to 120KW. This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. It is automatically adjusted according to load changes and is more energy efficient.
Features of chiller:
1. Scroll compressor for modle 12-180kw, semi-hermetic screw compressor for modle 130-2300kw. Each compressor is equipped with a crankcase heater and a thermal overload cut-out; the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line.
2. External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.
Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material.
3. Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
4. Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.
5. Hydraulic circuit built with galvanized pipe, complete with water discharge connection for shell and tube heat exchanger and flange type hydraulic connectors.
6. Electric panel consist of: Compressor contactor, fan motor contactor, compressor isolating switch, fan protection breaker, phase sequence relay and microprocessor with function display.
7. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
1 Compressor reverse protective
2 Freeze protector protective
3 Refrigerant safety valve
5 High-pressure gauge and Low-pressure gauge
6 Power phase failure protector
7 Coil over-heat protector
8 Temperature auto-switch
9 Refrigerant shortage protective
|Water cooled scroll type chiller(R-134a)|
|Comprosser||Mode||Full closed high efficiency flexible scroll compressor|
|Rated load current(A)||5.4||9.25||11.2||10.8||16.7||18.5||22.4||33.6||44.8|
|Add unloading way||0,100%||0,50%,100%||0,33%,66%,|
|Condensor||Cooling water temp（℃）||Inlet temp 30℃/outlet temp 35℃|
|Cooling water flow(m³/h)||2.04||3.25||4.39||4.99||6.41||6.49||8.77||13.16||17.54|
|Evaporater||Freeze water temp（℃）||Inlet temp 12℃/outlet temp 7℃|
|Freeze water flow（m³/h)||1.63||2.6||3.51||3.99||5.13||5.19||7.02||10.53||14.04|
|Safeguard||Water pump protection chain, electric leakage protection, overload protection, overpressure, the power reverse phase, open phase protection, abnormal refrigerant protection, exhaust temperature protection, Lack of water protection, etc.|
1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。
2、Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of water pump, can be designed and manufactured according to the concrete situation.
3、In order to ensure technology constantly updated, the above parameters are subject to change without prior notice
4、The specific parameters for non-standard products, welcome consulting our technical department.
