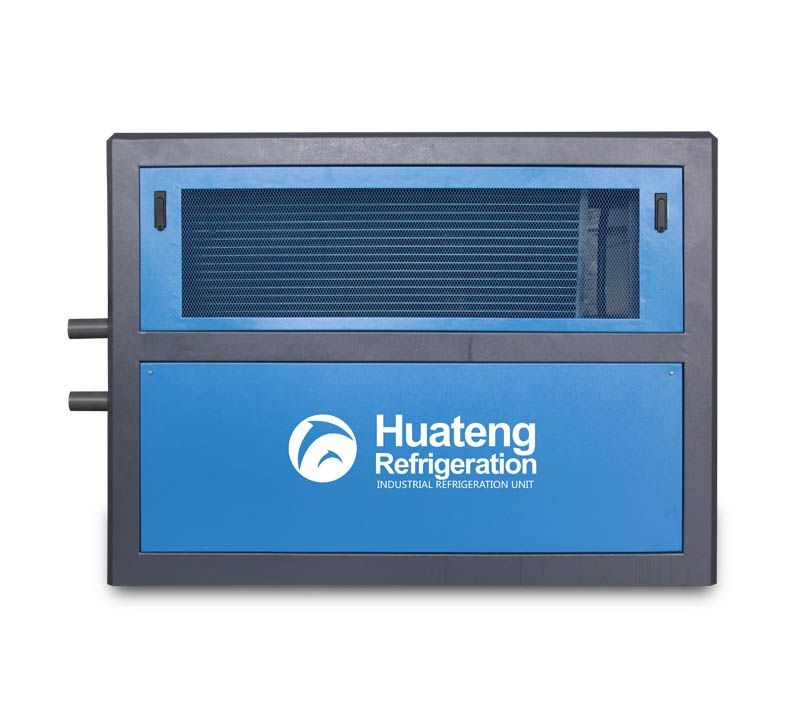

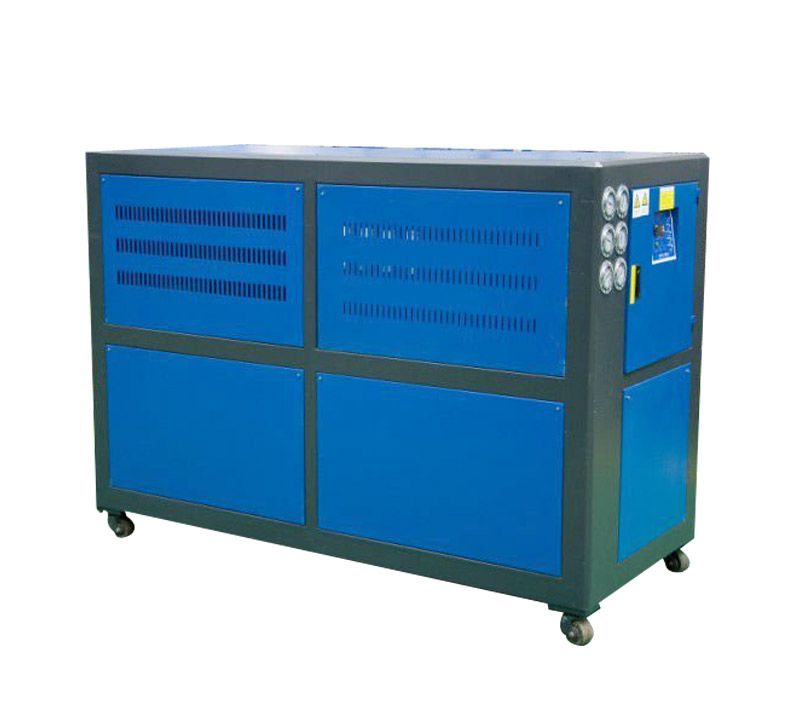

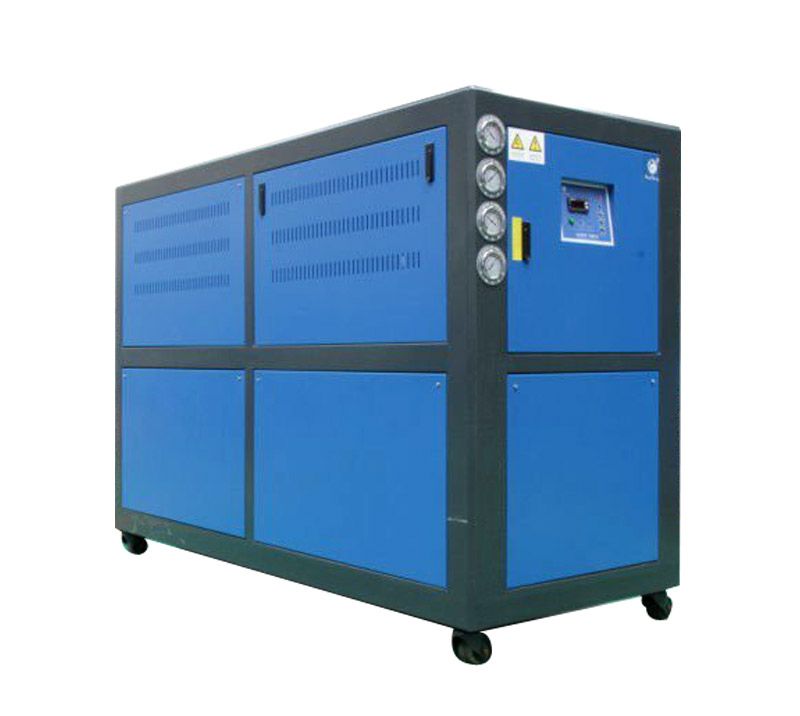

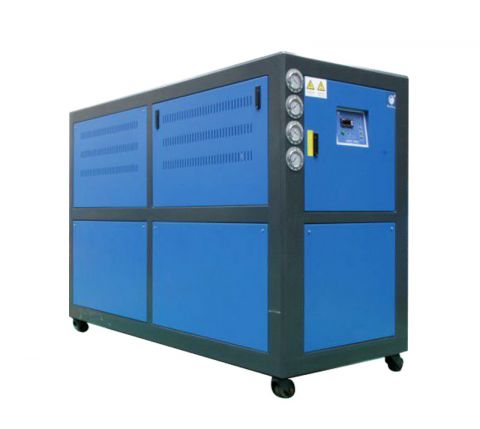

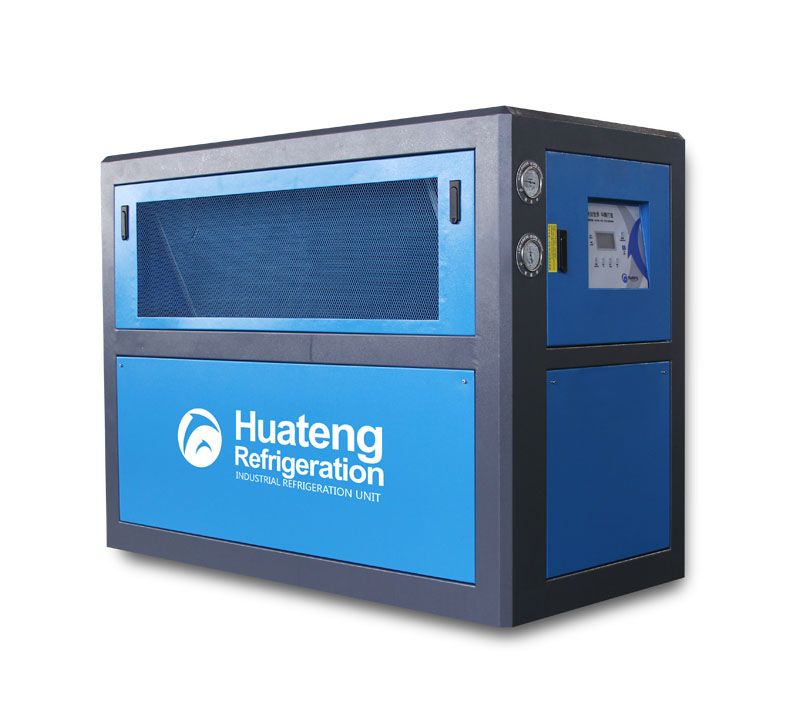

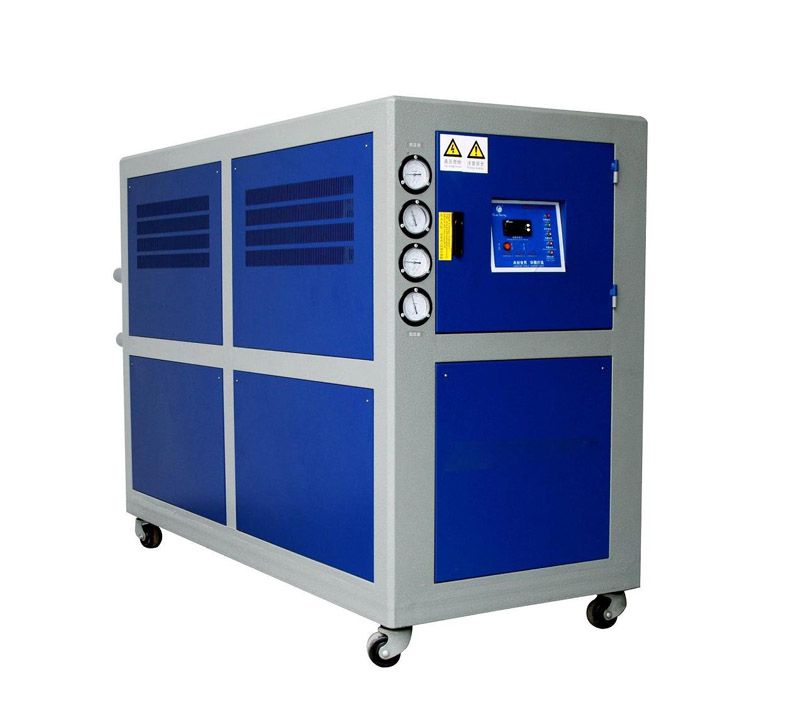

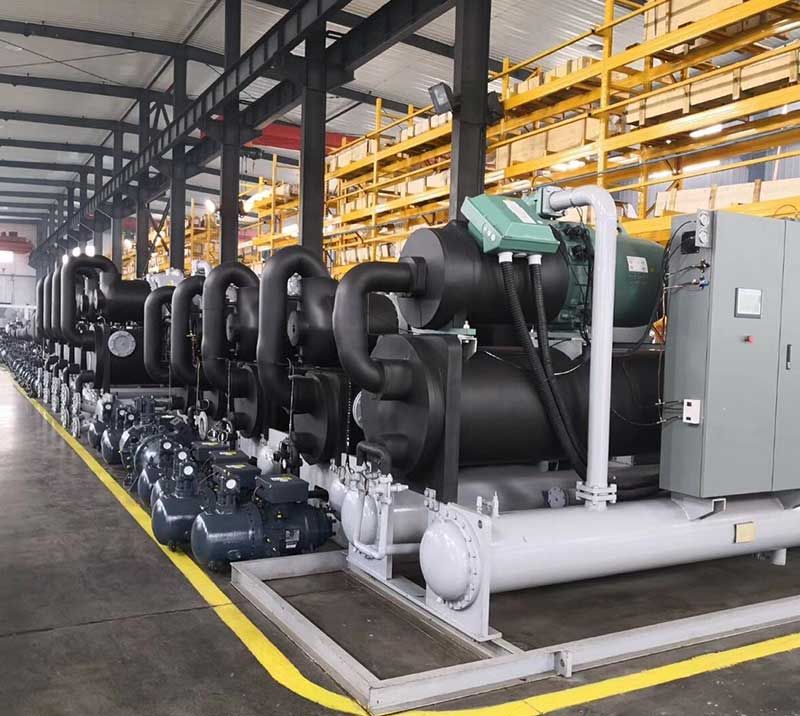

Water Cooling Scroll Type Chiller

Inquire Now None Download

Product Description

The series water cooled scroll type chiller cooling capacity from 9KW to 120KW. This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. It is automatically adjusted according to load changes and is more energy efficient.

Features of chiller:

1. Employing original scroll compressor, compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life;

2. Employing all-new imported high class component;

3. Employing two sets of compressor which can be used jointly or independent;

4. Switch control, easy operation and maintenance;

5. The weld of brass pipe is non-oxidization;

6.Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003,operation safe.

Benefits

1.Water Cooled Scroll Chiller is renowned for its energy-efficient performance featured by multiple scroll compressors with dual refrigeration circuits implementing high compression force on coolant for instant cooling.

2.Environment friendly with easy installation configured by the filling of the tank with refrigerant having no ozone depletion potential and prevents the environment from global warming by processing the heat collected from industrial application.

3.Has a lower cost of maintenance and energy-efficient heat releasing from processing machines configured by use of city supply chilled water circulation having high heating capacity to absorb heat with again and again circulation, prevents the owner from high expanses.

Applications

Commercial applications as hypermarkets, supermarkets, water jets, injection and blow molding, medical labs, hospitals, beverage industry, vacuum coating, pharmaceutical industry, plastic industry, and construction industry.

Huazhao is one of the leading Water Cooled Chiller Manufacturers,welcome to contact us for a free quotation.

Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective

Products Parameters

Water cooled scroll type chiller(R-134a)
Model		HTB-M10S	HTB-M15S	HTB-M20S	HTB-M23S	HTB-M30S	HTB-M30S	HTB-M41S	HTB-M61S	HTB-M82S
Cooling Capacity	KW	9.5	15.1	20.4	23.2	29.8	30.2	40.8	61.2	81.6
	Kcal/Hr	8170	12986	17544	19952	25628	25972	35088	52632	70176
	RT	2.7	4.29	5.8	6.6	8.47	8.59	11.6	17.4	23.2
Power	50HZ	3P-380V-50HZ
Comprosser	Mode	Full closed high efficiency flexible scroll compressor
	Input power(KW)	2.19	3.49	4.55	5	6.8	6.98	9.18	13.65	18.2
	Rated load current(A)	5.4	9.25	11.2	10.8	16.7	18.5	22.4	33.6	44.8
Wiring specification		4	6	6	6	10	10	25	25	25
Add unloading way		0,100%					0,50%,100%		0,33%,66%, 100%	0,25%,50%, 75%,100%
Condensor	Cooling water temp（℃）	Inlet temp 30℃/outlet temp 35℃
	Cooling water flow(m³/h)	2.04	3.25	4.39	4.99	6.41	6.49	8.77	13.16	17.54
	Waterpipe diameter(DN)	32	32	40	40	40	40	50	50	65
Evaporater	Freeze water temp（℃）	Inlet temp 12℃/outlet temp 7℃
	Freeze water flow（m³/h)	1.63	2.6	3.51	3.99	5.13	5.19	7.02	10.53	14.04
	Waterpipe diameter(DN)	32	32	32	32	40	40	40	50	65
Safeguard		Water pump protection chain, electric leakage protection, overload protection, overpressure, the power reverse phase, open phase protection, abnormal refrigerant protection, exhaust temperature protection, Lack of water protection, etc.
Size	L(mm)	1210	1250	1250	1400	1400	1500	1640	1900	2500
	W(mm)	650	700	700	700	700	700	700	850	800
	H(mm)	1080	1100	1100	1100	1100	1100	1100	1250	1250
Units Weight	Kg	240	300	320	340	370	440	560	630	720

Note:

1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。

2、Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of water pump, can be designed and manufactured according to the concrete situation.

3、In order to ensure technology constantly updated, the above parameters are subject to change without prior notice

4、The specific parameters for non-standard products, welcome consulting our technical department.
