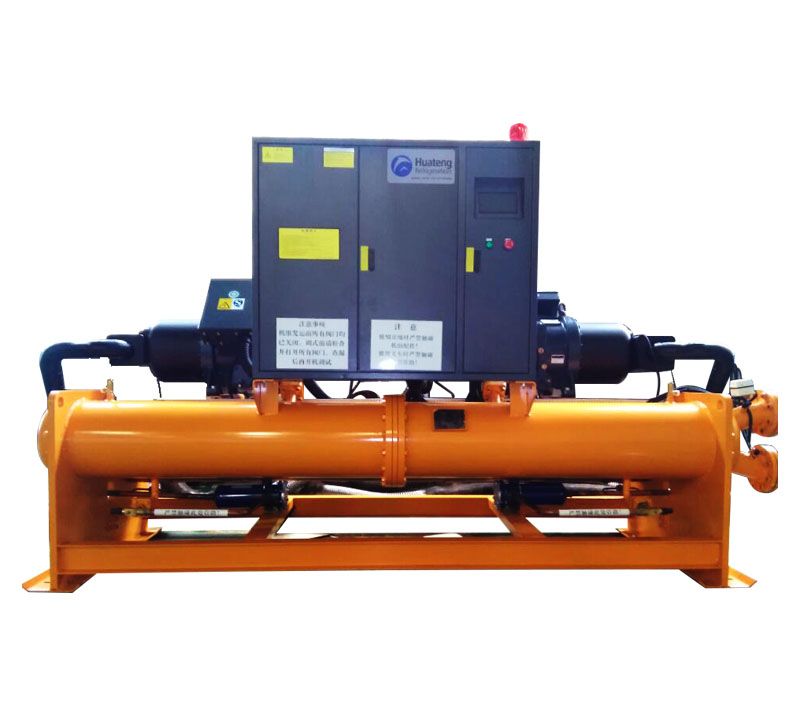

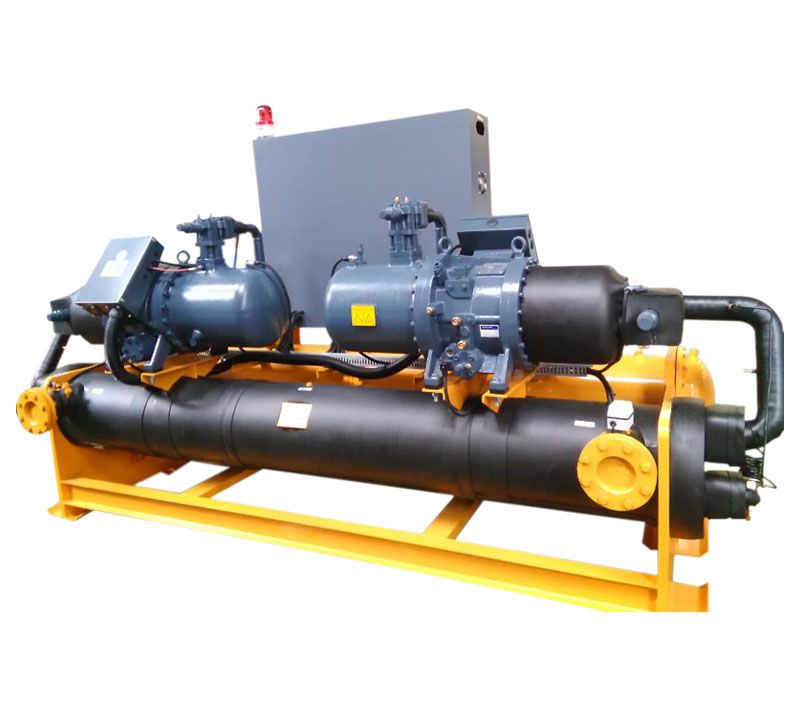

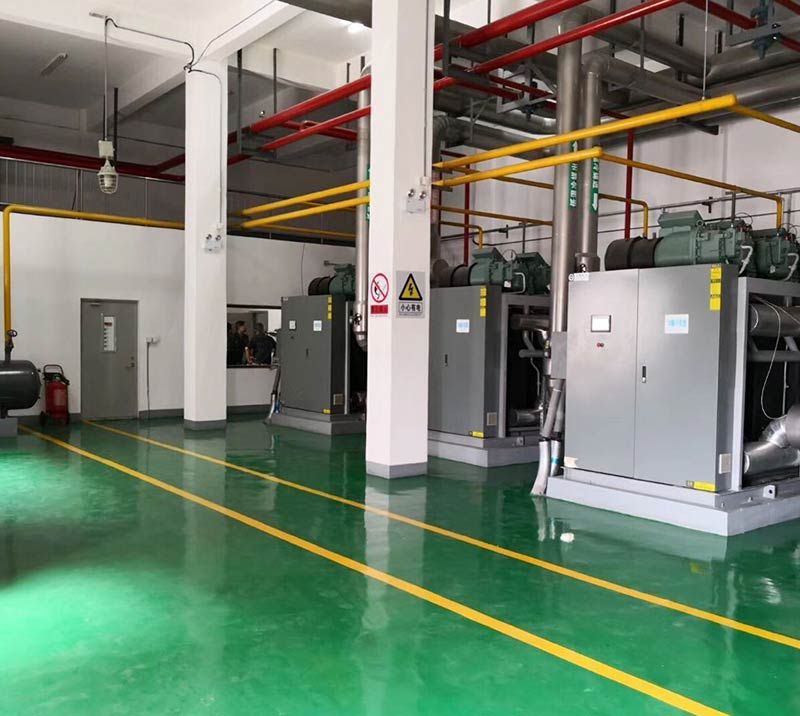

Water Cooled Screw Chiller

Inquire Now Next Product Download
Share

Product Description

Description:

The series water chiller adopts efficient semi-closed screw compressor. the compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably.


Features of chiller:

1. Scroll compressor for modle 12-180kw, semi-hermetic screw compressor for modle 130-2300kw. Each compressor is equipped with a crankcase heater and a thermal overload cut-out; the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line.

2. External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.

Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material.

3. Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.

4. Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.

5. Hydraulic circuit built with galvanized pipe, complete with water discharge connection for shell and tube heat exchanger and flange type hydraulic connectors.

6. Electric panel consist of: Compressor contactor, fan motor contactor, compressor isolating switch, fan protection breaker, phase sequence relay and microprocessor with function display.

7. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.


Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective


ModelHTK-M390/2HTK-M440/2HTK-M500/2HTK-M530/2HTK-M590/2HTK-M700/2HTK-M800/2HTK-M930/2HTK-M1060/2HTK-M1200/2HTK-M1320/2HTK-M1500/2HTK-M1670/2
Cooling
Capacity
KW39044050053059470080093210601196132414961670
Kcal/Hr3354003784004300004558005108406020006880008015209116001028560113864012865601436200
RT110.89125.11142.17150.7168.89199.03227.47265301.39340.06376.46425.36474.84
Power 50HZ3P-380V-50HZ
Input power(KW)82.892.2103.2110.8117.8135.6156.6181.8206232.4257.4290.6324.6
EERCOP4.714.774.844.785.045.165.115.135.155.155.145.155.14
Freezing mediumR134a
control modeThermal expansion valve
ComprosserModeSemi-closed double screw
Working styleY-Δ/Δ-Δ
Capacity0,12.5%, 25%,37.5%, 50%,62.5%, 75%,87.5%, 100%
CondensorModeEfficient external thread shell and tube type
Cooling water In 30℃/Out 35℃
tempreture
Cooling water flow (m³/h)83.994.6107.5114127.7150.5172200.4227.9257.1284.7321.6359.1
Pressure loss (Kpa)58586363656567676770707172
waterpipeDN80×2DN80×2DN100×2DN100×2DN100×2DN100×2DN125×2DN125×2DN125×2DN150×2DN150×2DN150×2DN200×2
EvaporatermodeEfficient internal thread shell and tube type
Freeze water In 12℃/Out 7℃
tempreture
Freeze water flow (m³/h)67.175.78691.2102.2120.4137.6160.3182.3205.7227.7257.3287.2
Pressure loss (Kpa)58586363656565666768687070
waterpipe DN100DN100DN125DN125DN125DN150DN150DN150DN150DN200DN200DN200DN200
SafeguardHigh and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection;
high pressure safety valve protection; oil pressure protection; exhaust over heat protection
WeightKg2050205026102820335040404560490052506320673071007250
SizeL(mm)4200420044004400460046004600470048004800480048004800
W(mm)1350135014801480156015601620162016201680168016801680
H(mm)1660166017501980198021002100220022302230223022302230
Noise(dB)74737374747575767777787880


Note:

1. Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃, evaporation temperature 2℃.

2. We can make order according to your requirement.

3. Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
