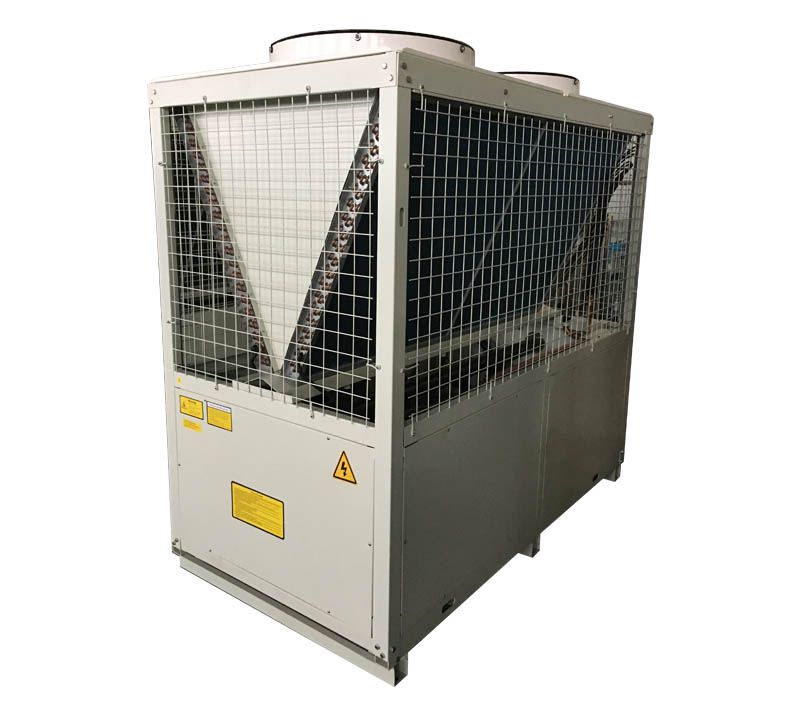

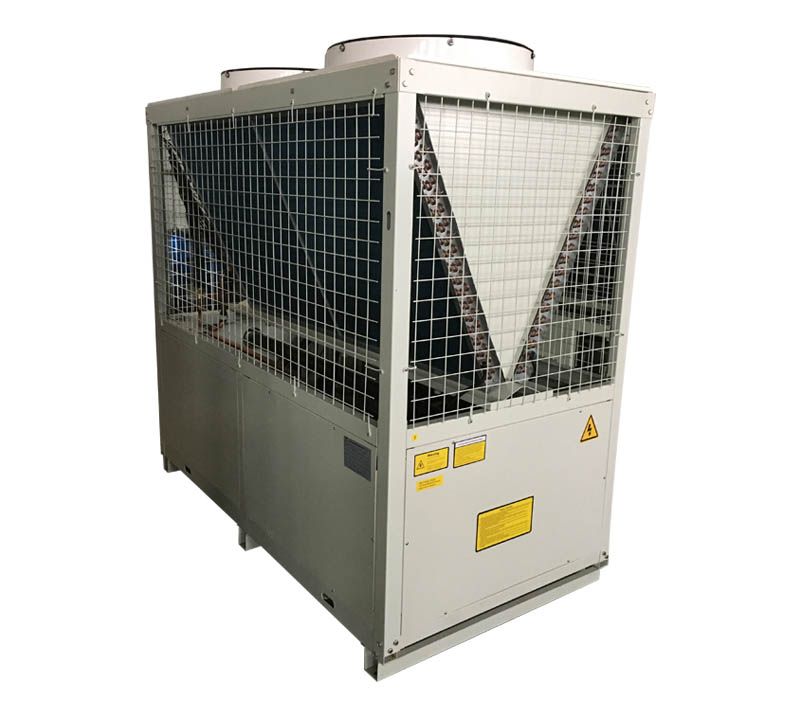

Module Air Cooled Heat Pump

Inquire Now Next Product Download

Product Description

The series modular air cooled chiller cooling capacity is from 7KW to 120KW. This series of units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopting microcomputer controllers, which makes the unit compact, reasonable layout, and convenient to use and maintain. The user simply connects the pipeline of the water system and the required power supply, then can put it into operation.

This series of chillers is widely used: it can provide processed chilled water for industrial and mining enterprises such as textile, chemical and petroleum. The manufacturing technology of this product is mature and stable and reliable.

Modular Air Cooled Chiller Features:

1. Employing the original SCROLL compressor, the compressor may according to loading auto-adjust, add a level sensor to prevent compressor low-loading to luck-oil, extend use life

2. Employing all-new imported high-class component

3. Employing two sets of compressors which can be used jointly or independent

4. Switch control, easy operation and maintenance

5. The weld of brass pipe is non-oxidization

6.Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003,operation safe

Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective

Air-cooled industrial chiller（environment-friendly）
Model		HTB-M9F	HTB-M14F	HTB-M18F	HTB-M21F	HTB-M27F	HTB-M27F	HTB-M36F	HTB-M54F	HTB-M72F
Cooling Capacity	KW	8.8	13.5	18	21	27	27	36	54	72
	Kcal/Hr	7568	11610	15480	18060	23220	23220	30960	46440	61920
	RT	2.5	3.84	5.12	5.97	7.68	7.68	10.24	15.35	20.47
Power	50HZ	3P-380V-50HZ
Compressor	Mode	Full closed high efficient flexible scroll compressor
	Input power(KW)	2.7	4.29	5.6	6.3	8.3	8.58	11.2	16.8	22.4
	Rated load current(A)	5.9	10	12.1	13.8	19.1	20	24.2	36.3	48.4
Wiring specification		4	6	6	6	10	10	16	25	35
Add unloading way		0,100%					0,50%,100%		0,33%,66%, 100%	0,25%,50%, 75%,100%
Condensor	Cooling fan(KW)	0.18×2	0.24×2	0.3×2	0.6×2	0.6×2	0.78×2	0.78×2	0.78×3	0.85×3
Condensor	Structure form	Efficient internal thread copper pipe hydrophilic aluminium fin+Auxiliary water spray falling film technology
Evaporator	Freeze water temp（℃）	Inlet temp 12℃/outlet temp 7℃
	Freeze water flow（m³/h)	1.51	2.32	3.1	3.61	4.64	4.64	6.19	9.29	12.38
	Waterpipe diameter(DN)	32	32	32	40	40	40	40	50	50
Safeguard		Overload protection, overpressure, inverse phase, open phase protection, exhaust temperature protection, abnormal refrigerant protection, water pump chain protection, etc.
Size	L(mm)	1200	1250	1400	1400	1700	1700	1700	2600	2800
	W(mm)	650	900	900	900	1000	1000	1000	1100	1200
	H(mm)	1250	1720	1750	1750	1900	1900	1920	1950	1980
Units Weight	Kg	220	280	300	320	350	420	540	610	690

Note:

1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。

2、Above are my company's industrial water-cooled water chiller parameters, the evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of the water pump, can be designed and manufactured according to the concrete situation.

3、 To ensure technology is constantly updated, the above parameters are subject to change without prior notice

4、The specific parameters for non-standard products, welcome consulting our technical department.

Our Services：

1. After sale service: All of our machine provide long time after-sale service .

2. We accept OEM orders, processing according to buyer’s samples or drawing

3. On-time shipment

4. Product quality protection

5. Payment protection.

Application field：Industrial and commercial field

Modular Air Cooled Chiller Applications:

High-capacity evaporators are available for 40°F (4°C) leaving water applications or for applications requiring glycol to offset the capacity reduction of the glycol system.

Constant or variable primary flow systems with factory-installed motorized or manual valve packages.

Ice making mode is available for skating rinks, thermal storage and more.

Heat recovery capability up to 140°F (60°C) to conserve energy by using a second condenser to provide leaving water to serve heat loads like boiler loops, reheat coils, and more.

The flexible design of Huazhao chillers allows applications in both process and comfort cooling applications.
