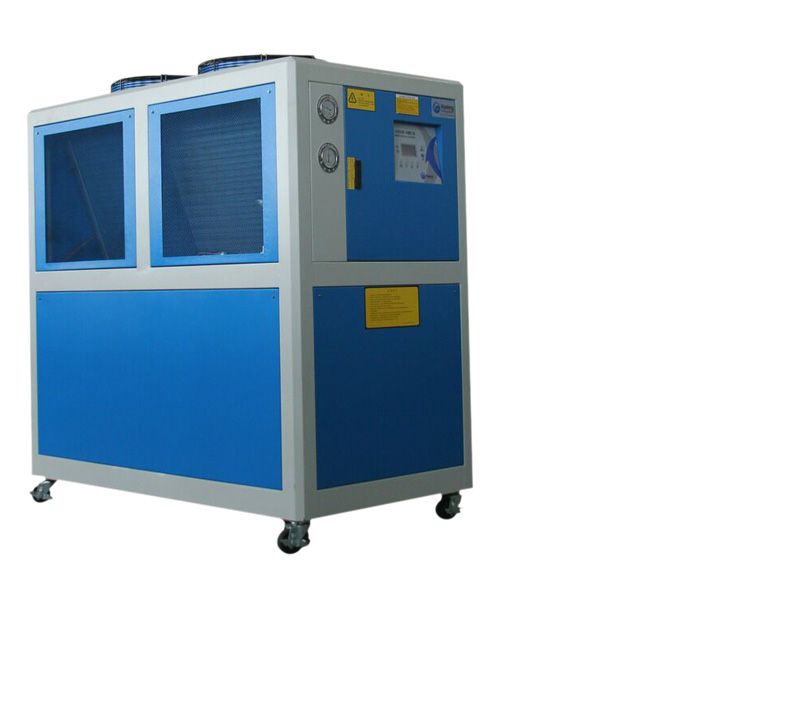

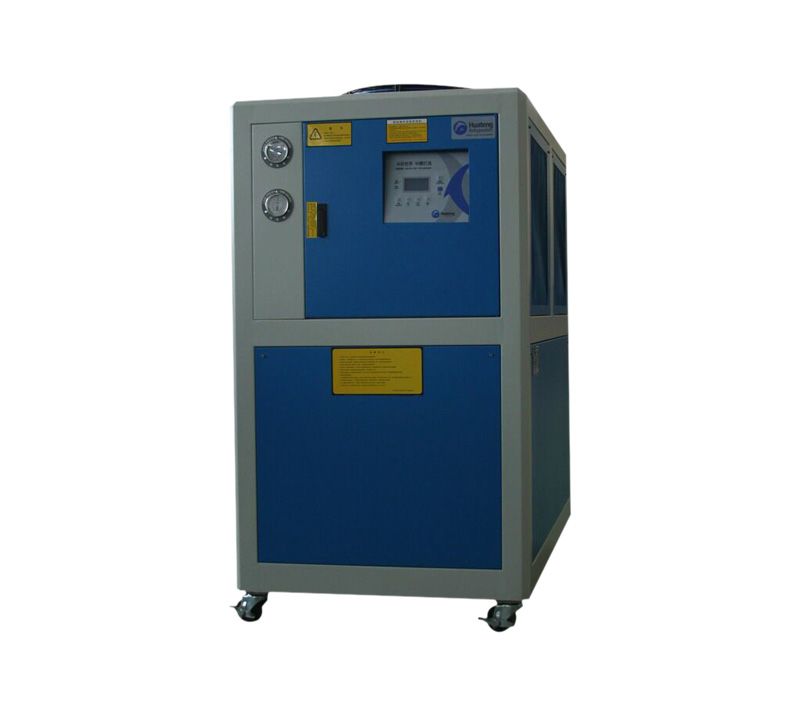

Air Cooled Scroll Chiller

Inquire Now Next Product Download
Share

Product Description

Description:

The series modular air cooled scroll type chiller cooling capacity from 7KW to 120KW. This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. The user just need simply connect the pipeline of the water system and the required power supply,then can put into operation.

This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum. The manufacturing technology of this product is mature and stable and reliable.


Features:

1. Scroll compressor for modle 12-180kw, semi-hermetic screw compressor for modle 130-2300kw. Each compressor is equipped with a crankcase heater and a thermal overload cut-out; the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line.

2. External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.

Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material.

3. Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.

4. Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.

5. Hydraulic circuit built with galvanized pipe, complete with water discharge connection for shell and tube heat exchanger and flange type hydraulic connectors.

6. Electric panel consist of: Compressor contactor, fan motor contactor, compressor isolating switch, fan protection breaker, phase sequence relay and microprocessor with function display.

7. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.


Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective


Air cooled industrial chiller (R22)
ModelHTB-7FHTB-14FHTB-21FHTB-28FHTB-32FHTB-40FHTB-41FHTB-56FHTB-84FHTB-112F
Cooling
Capacity
KW7.213.520.72831.54041.45684112
Kcal/Hr6192116101780224080270903440035604481607224096320
RT2.053.845.897.968.9611.3711.7715.9223.8831.85
Power50HZ3P-380V-50HZ
ComprosserModeFull closed high efficiency flexible scroll compressor
Input power(KW)2.44.26.18.19.212.412.216.224.332.4
Rated load current(A)4.4911.614.616.223.923.229.243.858.4
Wiring specification446661010162535
Add unloading way0,100%0,50%,100%0,33%,66%,
100%
0,25%,50%,
75%,100%
CondensorCooling fan(KW)0.20.18×20.24×20.3×20.6×20.6×20.78×20.78×20.78×30.85×3
Structure formEfficient internal thread copper pipe hydrophilic aluminium fin+Auxiliary water spray falling film technology
EvaporaterFreeze water temp(℃)Inlet temp 12℃/outlet temp 7℃
Freeze water flow(m³/h)1.242.323.564.825.426.887.129.6314.4519.26
Waterpipe diameter(DN)32324040404040506580
SafeguardOverload protection,overpressure,inverse phase,open phase protection,exhaust temperature protection,abnormal refrigerant protection,water pump chain protection, etc.
SizeL(mm)960120012501400140017001700170026002800
W(mm)70065090090090010001000100011001200
H(mm)1120125017201750175019001900192019501980
Units WeightKg190220280300320350420540610690


Note:

1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。

2、Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of water pump, can be designed and manufactured according to the concrete situation.

3、In order to ensure technology constantly updated, the above parameters are subject to change without prior notice

4、The specific parameters for non-standard products, welcome consulting our technical department.
