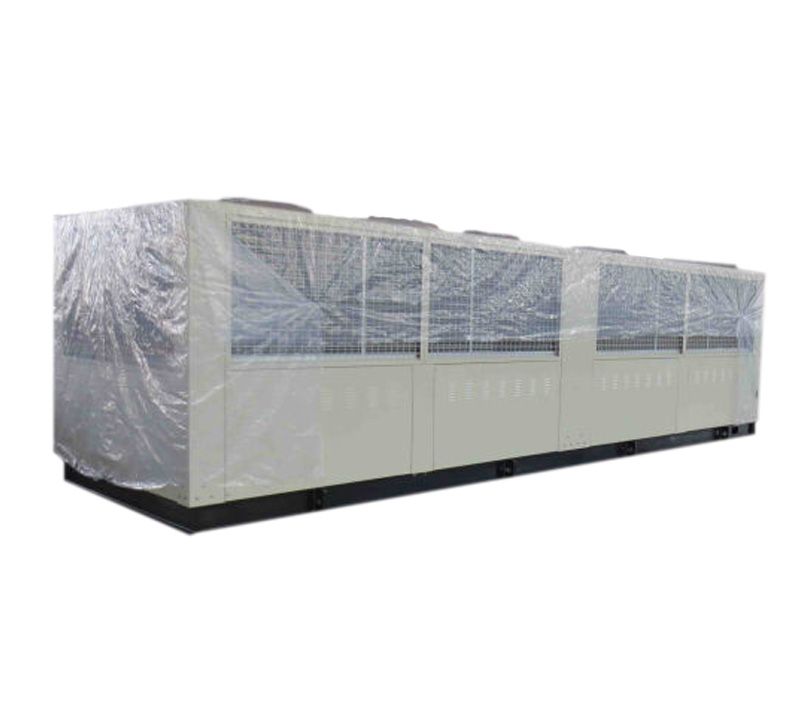

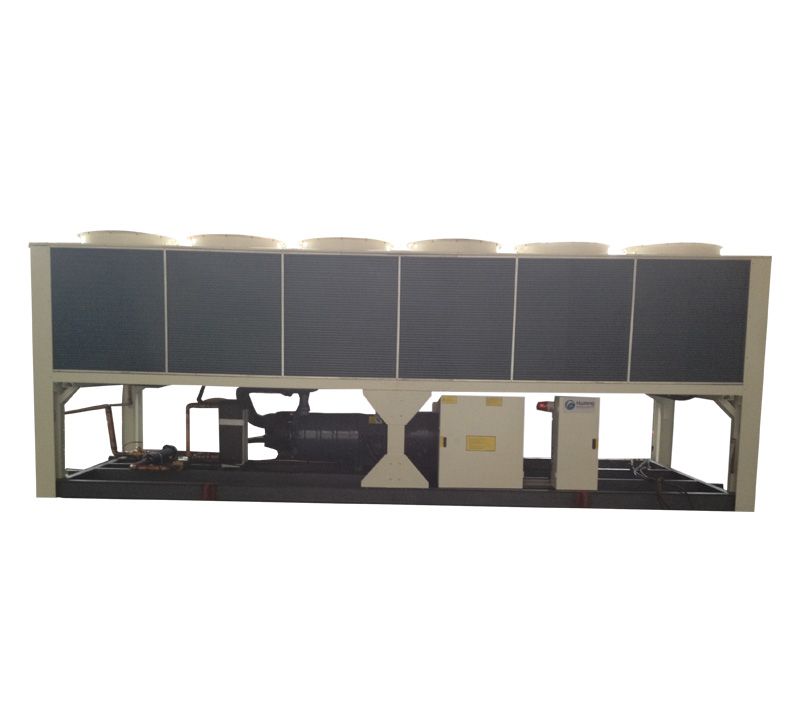

Air Cooled Screw Chiller

Inquire Now Next Product Download
Share

Product Description

Description:

The series air cooled screw type chiller cooling capacity from 85KW to 1550KW. This series units integrates the characteristics of many other products, using imported semi-closed screw compressors,supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. The user just need simply connect the pipeline of the water system and the required power supply,then can put into operation.

This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum. The manufacturing technology of this product is mature and stable and reliable.


Features of chiller:

1. Environmental protection

2. Energy efficient

3. Adopt international brand compressor

4. The system stable and reliable.

5. Electronic expansion valve throttle, adjust the range more accurate.

6. Modular design of the unit, the free combination of up to 10 modules can be connected, any one can be set to be main module.


Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective


ModelHTK-M220F/2HTK-M280F/2HTK-M310F/2HTK-M390F/2HTK-M420F/2HTK-M510F/2HTK-M580F/2HTK-M670F/2
Cooling
Capacity
KW221275310391417514580670
Kcal/Hr190060236500266600226260358620442040498800576200
RT62.8478.1988.14111.17118.57146.15164.91190.5
Power50HZ3P-380V-50HZ
Input power(KW)75.286.197.3131139.6159.9178.6208.1
EERCOP2.943.193.192.982.993.213.253.22
Freezing mediumR134a
control modeThermal expansion valve
ComprosserModeSemi-closed double screw
Working styleY-Δ/Δ-Δ
Capacity0,12.5%, 25%,37.5%, 50%,62.5%, 75%,87.5%, 100%
CondensorModeFinned type
Cooling air tempretureIn 35℃/Out 45℃
Wind flow (m³/h)120000180000180000180000240000240000294000294000
Fan quantity812121216162020
Motor power(KW)0.85*80.85*120.85*120.85*120.85*160.85*160.85*200.85*20
EvaporatermodeEfficient finned tube filled with liquid
Freeze water tempretureIn 12℃/Out 7℃
Freeze water flow (m³/h)3847.353.367.371.788.499.8115.2
Pressure loss (Kpa)5858586363656565
waterpipeDN80DN100DN100DN100DN100DN125DN125DN125
SafeguardHigh and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection;
high pressure safety valve protection; oil pressure protection; exhaust over heat protection
WeightKg38004700500055007000720080008260
SizeL(mm)40406000600060007040704080408040
W(mm)22002200220022002020202020202200
H(mm)22602260226022802680268026802680
Noise(dB)7474737374747575


Note:

1. Above cooling capacity parameters are all based on the conditions of dry bulb temperature 35℃, water temperature (in) 12℃,water temperature(out)7℃

2. We can make order according to your requirement.

3. Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
